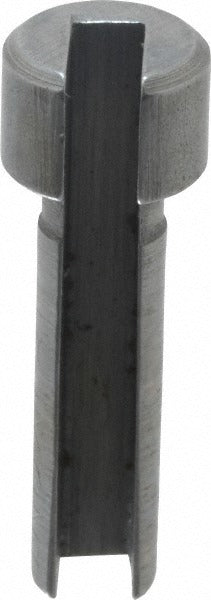

Dumont Minute Man 44501 Collared Broach Bushing 6mm

Product Description

The DUMONT MINUTE MAN 44501 is a Style A collared broach bushing with a 6mm overall diameter. Broach bushings are precision guide components used to locate and support broaching tools during the cutting process, ensuring accurate hole sizing and alignment in metalworking operations. The collared design provides a positive stop against the workpiece or fixture surface, preventing over-insertion. This bushing is typically installed by machinists and toolmakers working with rotary or push broaching setups on production or job-shop equipment.

This component is suited for use in machining fixtures, jigs, and press tooling where broach guidance and repeatable positioning are required. The Style A designation refers to a standard plain collared bushing profile commonly used across a range of industrial broaching applications. At 0.06 pounds, it is a lightweight, precision hardware item appropriate for both light-production and high-cycle tooling environments.

Key Features

• Style A collared plain bushing profile provides positive axial stop during broaching
• 6mm overall diameter suits standard metric broaching tool setups
• Collared design prevents over-insertion and maintains consistent depth alignment
• Lightweight construction at 0.06 pounds for minimal fixture loading

Compatibility

Designed as an OEM-style replacement or direct-fit component for metalworking fixtures and broaching tooling setups requiring a Style A collared plain bushing with a 6mm overall diameter.

Installation Notes

Installation is typically performed by a machinist or toolmaker as part of fixture assembly or tooling maintenance. Ensure the receiving bore and mating surfaces are clean and free of burrs before pressing or seating the bushing. Always de-energize and lock out any associated press or broaching equipment before servicing tooling components. Consult applicable facility safety and tooling standards for proper press-fit tolerances and fixture qualification procedures.
