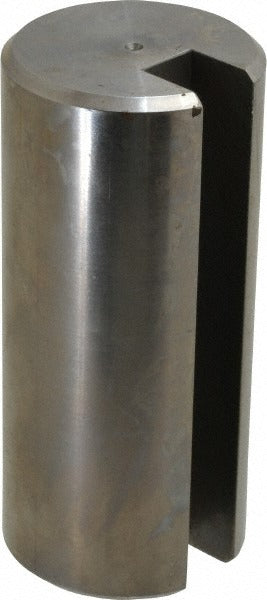

Dumont Minute Man 44476 Plain Broach Bushing 70mm

Product Description

The DUMONT MINUTE MAN 44476 is a Style E plain broach bushing designed to guide and support broaching tools during precision cutting operations. This collared bushing features a 70mm overall diameter and is used to maintain accurate tool alignment in broaching fixtures and press setups. The plain bore design accepts the broach directly without additional locking mechanisms, and the collared style provides a positive stop against the fixture face to control seating depth. Machinists and toolroom technicians install this bushing as part of a broaching fixture assembly in metalworking and manufacturing environments.

This bushing is suited for industrial broaching applications where consistent tool guidance is required. The Style E designation indicates a specific dimensional standard within the DUMONT MINUTE MAN broach bushing line. It is appropriate for use in fixture plates, jig bodies, and press-type broaching setups found in production machining, job shop, and maintenance repair environments. The collared plain configuration is a common choice when a fixed, non-rotating guide is needed for push or pull broaching operations.

Key Features

• Style E broach bushing configuration for standardized fixture compatibility
• Collared plain design provides positive axial seating against fixture face
• 70mm overall diameter suits medium to large broaching tool applications
• Plain bore type accepts broach directly without locking hardware
• Single-piece unit ships individually, suitable for replacement or new fixture builds

Compatibility

Designed as an OEM-style replacement or direct fitment broach bushing for fixtures requiring a Style E collared plain bushing with a 70mm overall diameter.

Installation Notes

Installation is typically performed by a machinist or toolroom technician as part of fixture assembly or maintenance. Ensure the fixture plate bore is clean and dimensionally correct before pressing or sliding the bushing into position. Confirm all press or broaching equipment is fully de-energized and at rest before servicing fixture components. Follow applicable shop safety and fixture design standards when integrating broach bushings into production tooling.
