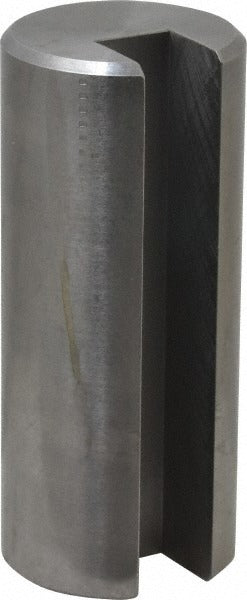

Dumont Minute Man 44466 Plain Broach Bushing 55mm

Product Description

The DUMONT MINUTE MAN 44466 is a plain broach bushing designed to guide broaching tools during precision hole-finishing operations. This Style E collared bushing features a 55mm overall diameter and is used to align and support broaches as they pass through a workpiece, ensuring accurate sizing and surface finish. At 4 pounds, the bushing is built for the rigors of production tooling environments. Machinists and toolroom technicians working with broaching fixtures rely on this type of bushing to maintain concentricity and extend broach tool life.

This bushing is suited for industrial machining and tooling applications where repeatable, accurate broach guidance is required. Style E plain broach bushings with collared design are commonly installed in broaching fixture plates and press tooling setups. They are appropriate for both job-shop and production-floor environments handling ferrous and non-ferrous workpieces.

Key Features

• Style E broach bushing configuration for standardized fixture compatibility
• Collared and plain bushing type for positive seating and secure fixture retention
• 55mm overall diameter for use in correspondingly bored fixture plates
• 4-pound solid construction suitable for demanding production tooling use
• Single-piece packaging - sold individually

Compatibility

Designed as an OEM-style replacement or direct tooling component for broaching fixtures requiring a Style E collared plain bushing with a 55mm overall diameter.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Press the bushing into the fixture plate bore using an arbor press, ensuring the bore is clean and dimensionally correct before installation. Verify that the fixture is de-energized and the broaching press is in a safe, locked-out state before servicing or replacing any tooling components. Do not hammer the bushing directly without a proper driver to avoid damage to the bushing bore or seating surface.
