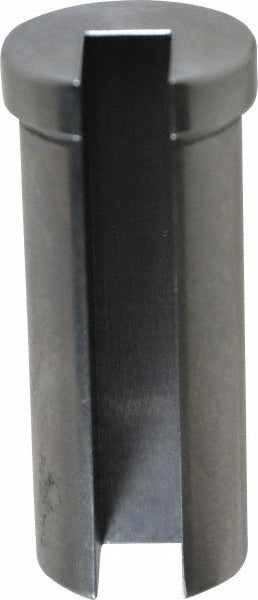

Dumont Minute Man 44442 Collared Broach Bushing 25mm

Product Description

The DUMONT MINUTE MAN 44442 is a Style C collared broach bushing with a 25mm overall diameter, designed to guide broaching tools accurately through workpieces during machining operations. This plain, collared bushing seats securely in a fixture or press plate to maintain alignment and reduce tool deflection. It is a precision component used in metalworking and tooling applications where consistent bore geometry is critical. Machinists and toolroom technicians typically source this bushing as a direct replacement or original specification component for broaching setups.

This bushing is suited for industrial machining environments where rotary or push broaching is performed on metal components. The collared design helps position the bushing at a fixed depth within the fixture plate, making it appropriate for production tooling, jig plates, and broaching press setups. Its plain bore style accommodates standard broach tool shanks at the 25mm diameter range.

Key Features

• Style C collared configuration for fixed-depth seating in fixture plates
• Plain bushing bore for compatibility with standard broaching tool shanks
• 25mm overall diameter for precise tool guidance and alignment
• Compact and lightweight at 0.2 pounds for easy handling and installation
• Single-piece unit sold individually

Compatibility

Designed as an OEM-style replacement or tooling component for broaching fixtures and jig plates requiring a 25mm collared Style C broach bushing.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. The bushing should be pressed or driven into a properly sized fixture bore using a press or appropriate driving tool - never struck directly with a hammer without a driver. Verify bore diameter and depth in the fixture plate before installation to ensure proper seating of the collar. Always de-energize and secure any associated press or machine before servicing tooling components.
