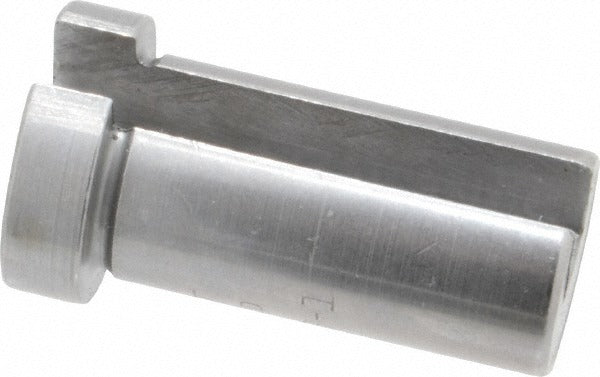

Dumont Minute Man 44436 Collared Broach Bushing 18mm

Product Description

The DUMONT MINUTE MAN 44436 is a collared broach bushing designed to guide and support broaching tools during precision machining operations. Built to Style B-1 specifications, this plain collared bushing provides accurate tool alignment and helps protect the workpiece and broach from lateral movement during the cutting stroke. With an 18mm overall diameter, it fits standard broaching press setups used in metalworking and manufacturing environments. Machinists, tool and die makers, and production shop technicians install this bushing as part of a push or pull broaching fixture assembly.

This bushing is suited for use in broaching fixtures requiring an 18mm diameter collared guide bushing in Style B-1 configuration. It is appropriate for both manual and hydraulic broaching press setups found in job shops and production machining environments. The plain bore and collared flange design make it a straightforward drop-in component for fixtures built to accept this industry-standard bushing format.

Key Features

• Style B-1 collared configuration for standard broaching fixture applications
• 18mm overall diameter for precise tool guidance and lateral support
• Plain bore bushing type for smooth broach pass-through
• Collared flange seats securely in fixture to prevent axial movement during operation
• Lightweight at 0.13 pounds, minimizing fixture load

Compatibility

Designed as an OEM-style replacement or standard component for broaching fixtures and press setups that accept 18mm diameter Style B-1 collared plain broach bushings.

Installation Notes

Installation is typically performed by a machinist or tool and die technician. Ensure the broaching press and associated fixture are fully depressurized and at rest before removing or seating the bushing. The bushing should be pressed or seated into the fixture bore with proper alignment tooling to avoid cocking or damage to the bore surface. Verify fixture clearances and broach shank diameter before operation.
