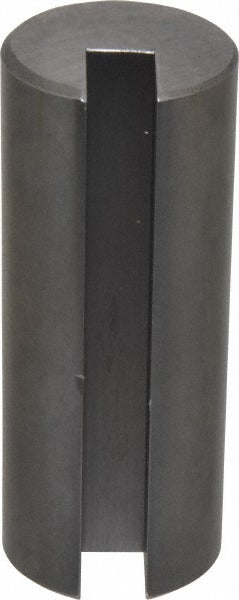

Dumont Minute Man 33357 Plain Broach Bushing 2in X 5in

Product Description

The DUMONT MINUTE MAN 33357 is a Style D plain broach bushing used to guide broaching tools during precision machining operations. With a 2-inch bushing diameter and a 5-inch overall length, this bushing provides stable tool alignment and consistent bore geometry across repeated passes. It is a solid, unlined bushing - no internal keyway or retention slot - making it suitable for straightforward through-broaching applications. At 4 pounds, it is machined to close tolerances and intended for use in press or fixture setups where accurate tool guidance is required. Machinists and tool-and-die professionals typically install this component during fixture assembly or broaching setup.

The 33357 is well suited for production and job-shop environments where broaching is performed on ferrous and non-ferrous workpieces. The Style D designation identifies the bushing body profile, which fits into corresponding receiver bushings or press-fit fixture bores of the appropriate diameter. The 5-inch length accommodates deeper guided-travel requirements, making this bushing appropriate for longer stroke broaching tools or stacked fixture configurations. It is typically used on manual or hydraulic broaching presses in both light manufacturing and heavy production settings.

Key Features

• Plain bushing style - no internal retention features for straightforward broaching guide applications
• Style D body profile fits corresponding receiver or press-fit fixture bores
• 2-inch bushing diameter provides substantial tool-guidance surface area
• 5-inch overall length supports longer stroke broaching operations
• Solid construction at 4 pounds for rigid, stable fixture integration

Compatibility

Designed as an OEM-style replacement or direct-fit plain broach bushing for use in fixture setups and broaching press applications requiring a Style D, 2-inch diameter, 5-inch length guide bushing.

Installation Notes

Installation is typically performed by a machinist or tooling technician during fixture assembly or broaching setup. Ensure the receiving bore is clean, dimensionally correct, and free of burrs before pressing or seating the bushing. Power down and de-energize any associated press or hydraulic equipment before handling fixture components. Follow applicable shop safety protocols and equipment manufacturer guidelines when pressing bushings into fixture plates.
