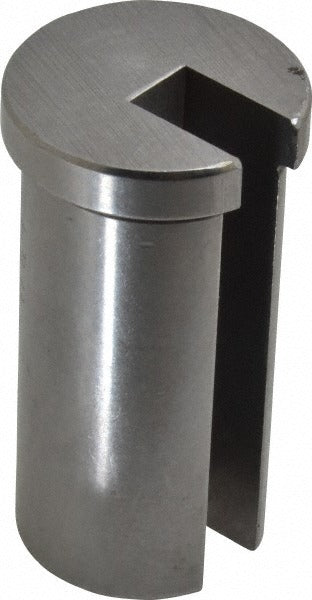

Dumont Minute Man 33341 Collared Broach Bushing Style C

Product Description

The DUMONT MINUTE MAN 33341 is a Style C collared broach bushing used to guide broaching tools precisely through a workpiece during machining operations. With a bushing diameter of 1-3/16 inches and a bushing length of 2-1/2 inches, it provides stable tool support and helps maintain accurate hole geometry. The collared design seats securely in the fixture plate, preventing the bushing from being pulled through during the broaching stroke. Machinists and tooling professionals use this bushing in press and pull broaching setups where repeatability and alignment are critical.

This bushing is suited for use in production machining environments where keyway, spline, or round broaching operations are performed on metal workpieces. The collared style makes it appropriate for applications requiring positive axial retention within a broach fixture or press plate. It is typically installed in machine shops handling ferrous and non-ferrous components that require precise internal profiles.

Key Features

• Style C collared design provides positive axial retention in the fixture plate
• 1-3/16 inch bushing diameter for precise tool guidance
• 2-1/2 inch bushing length offers extended tool support during the broaching stroke
• Designed for repeatable alignment in press and pull broaching operations
• Package quantity of 1 for individual replacement or single-station tooling builds

Compatibility

Designed as an OEM-style replacement or direct-fit broach bushing for fixtures and tooling plates requiring a Style C collared bushing with a 1-3/16 inch diameter bore.

Installation Notes

Installation is typically performed by a machinist or tooling technician. Ensure the fixture plate bore is clean and dimensionally correct before pressing or seating the bushing. Deburr mating surfaces and verify the collar seats flush against the fixture face before use. Follow applicable shop safety procedures and power down all equipment before servicing or replacing tooling components.
