Dumont Minute Man 22305 Keyway Broach Style B 1/8 in

Product Description

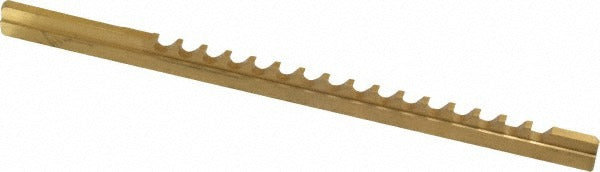

The DUMONT MINUTE MAN 22305 is a Style B keyway broach machined from high speed steel and designed for cutting precise keyways in bores, bushings, and hubs. With a keyway width of 0.125 inches and a width tolerance of 0.1252 to 0.1262 inches, this broach delivers tight, repeatable cuts suited to production and maintenance environments. The cutting length measures 1-11/16 inches, and the overall length is 6-3/4 inches. One shim is required for proper depth setup. A surface coating extends tool life under typical cutting loads. Machinists, tool-and-die makers, and maintenance technicians install this broach using an arbor press or hydraulic press.

The 22305 is used in applications requiring an internal keyway to transmit torque between a shaft and a mating component such as a gear, pulley, or sprocket. It is suited to light industrial and maintenance repair operations where a 1/8-inch keyway is the specified fit. The broach body width of 3/16 inches guides the tool through the bore, and the required press force is rated at 720 pounds. This broach is appropriate for single-piece and low-volume production runs where a dedicated broaching machine is not available.

Key Features

• Style B broach geometry for standard keyway profiles
• High speed steel construction for durability across common engineering materials
• Keyway width of 1/8 inch with a tolerance of 0.1252 to 0.1262 inches for precise fits
• 1-11/16 inch cutting length accommodates typical hub and bushing thicknesses
• Coated finish to reduce friction and extend cutting life
• Requires one shim for correct depth positioning during setup

Compatibility

Designed as an OEM-style replacement and standard tool for applications specifying a 1/8-inch Style B keyway broach in high speed steel with a 3/16-inch body width.

Installation Notes
