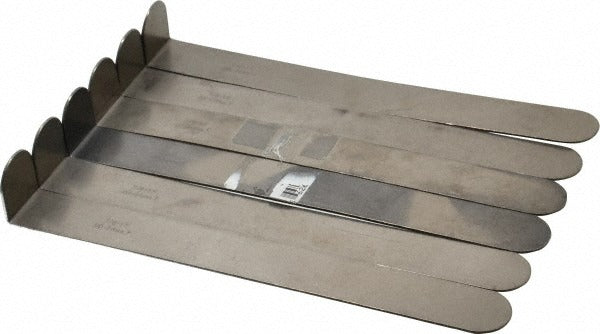

Dumont Minute Man 22265 Style F Broach Shim Set 6 Pc

Product Description

The DUMONT MINUTE MAN 22265 is a six-piece Style F broach shim set used to control cutting depth and keyway size during broaching operations. Each shim measures 0.0625 inches (1/16 inch) thick and is designed for use with a 7/8-inch keyway width. Broach shims are stacked beneath the broach to progressively increase the depth of cut or to size a keyway to the correct tolerance. This set ships with six shims, giving the machinist or tooling technician enough material to work through a range of depth adjustments in a single job.

Style F broach shims are used in metalworking, repair shops, and production environments wherever keyway broaching is performed on hubs, gears, pulleys, and similar components. The 7/8-inch keyway width makes this set appropriate for mid-range shaft and bore applications common in industrial drive systems and mechanical power transmission assemblies. Machinists, tool-and-die workers, and maintenance technicians typically keep shim sets on hand as expendable tooling consumables.

Key Features

• Six shims per set for incremental depth-of-cut adjustment
• Style F broach profile for correct fit in compatible broach holders
• 0.0625 inch (1/16 inch) shim thickness for precise depth control
• Sized for 7/8-inch keyway width applications
• Sold as a set of six - minimum order quantity of one set

Compatibility

Designed for use with Style F broaches in 7/8-inch keyway broaching applications. Confirm broach style and keyway dimensions before installation to ensure proper fit.

Installation Notes

Broach shims are installed between the broach and the broach holder or arbor press guide to adjust cutting depth. Secure all tooling and ensure the workpiece is firmly clamped before beginning the broaching stroke. Shims should be inspected for burrs or deformation before use, as damaged shims can affect keyway tolerance. This work is typically performed by machinists or skilled maintenance technicians following standard shop safety procedures.
