Dumont Minute Man 22255 Style C Broach Shim

Product Description

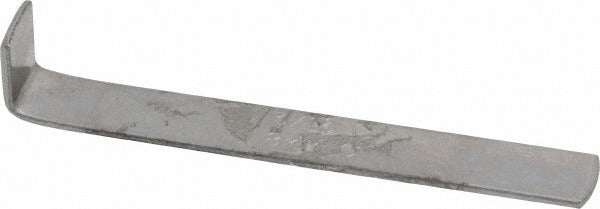

The DUMONT MINUTE MAN 22255 is a Style C broach shim used to control the depth of cut when broaching keyways. A single shim is included per package. It is sized for a 3/16-inch keyway width and measures 0.05 inches in thickness. Broach shims are placed between the broach and the bushing to adjust the cutting position, allowing machinists and tool-and-die technicians to achieve precise keyway depths without modifying the broach itself. This shim suits production and maintenance shops that require accurate, repeatable keyway sizing in metal components.

Style C broach shims are designed for use with Style C push-type broaching tooling. This part applies to broaching operations on keyways in hubs, gears, sprockets, and similar components where keyway depth control is critical. It is commonly used in machine shops, manufacturing facilities, and industrial maintenance environments. Installation is performed by qualified machinists or tool operators working with a broaching press or arbor press setup.

Key Features

• Style C broach shim for precise keyway depth adjustment
• 3/16-inch keyway width compatibility
• 0.05-inch shim thickness for controlled depth-of-cut setting
• Single-piece package for individual shim selection
• Lightweight at 0.06 pounds for easy handling and storage

Compatibility

Designed for use with Style C push-type broaching systems requiring a 3/16-inch keyway width and a 0.05-inch depth-of-cut adjustment.

Installation Notes

Install broach shims by placing the shim between the broach and the broach bushing before the cutting operation. Ensure the broaching press is fully powered down and depressurized before handling tooling or shims. Verify the shim thickness and style match the broach set specifications before use. Follow applicable shop safety procedures and tooling manufacturer guidelines during broaching operations.
