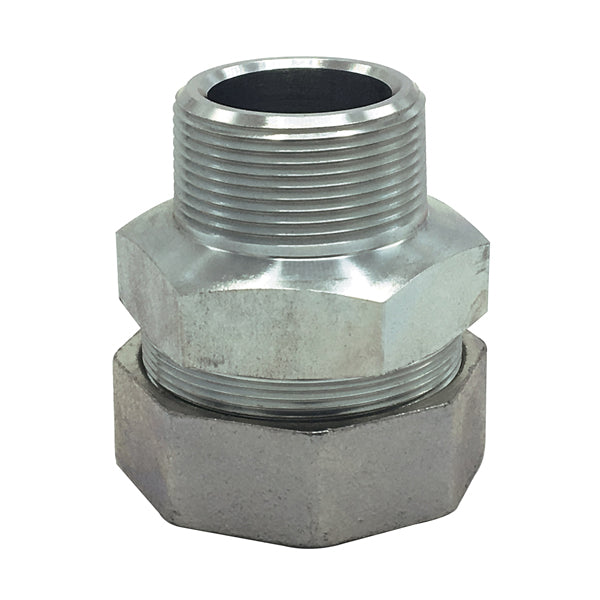

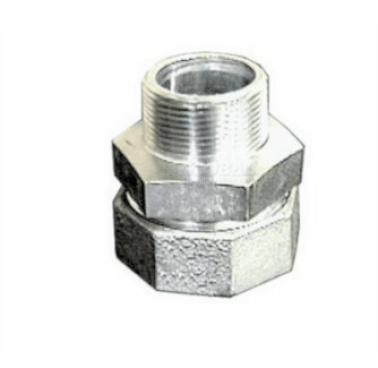

Dresser 0065-0209-003 Style 65 Galvanized Male Adapter 1 inches

Product Description

The DRESSER 0065-0209-003 Style 65 Galvanized Male Adapter is a 1" adapter made from malleable iron with an electro-galvanized finish. The resilient Dresser gasket provides permanent flexibility and pipeline protection from vibration and expansion-contraction movements. Style 65 compression fittings save time and money by assembling quickly onto the pipe with no threading, flaring or exact pipe fitting required.

• Galvanized
• Male Adapter
• Compression Fittings

Product Highlights

The Dresser Style 65 compression fittings install quickly onto plain-end pipe or tubing. Simply loosen the end nuts, stab the pipe into the fittings and tighten end nuts with a wrench.

Product Information

Standard Information

• Brand: DRESSER
• Manufacturer Part Number: 0065-0209-003

Technical Specifications

• Dresser #: 0065-0209-003
• Overall Length: 1 15/32"
• Gaskets: Armored Grade 27
• Material: Malleable Iron
• Finish: Electro-galvanized
• Max PSI: 150 PSI
• Max Temp: 150 Degrees F
• Brand: Dresser
• Standard Approvals: Conforms to ANSI specifications for 150 psi rated fittings
• Application: For water service applications
• Shape: Adapter
• End Connection: IPS Compression, MIPT
• Class: Style 65 / 65L
• Size: 1"
• Type: Male
