Product Description

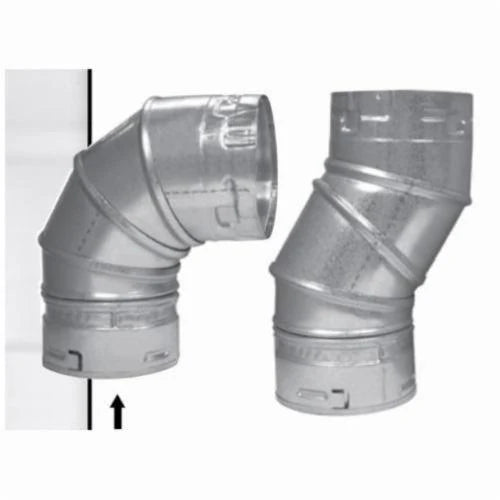

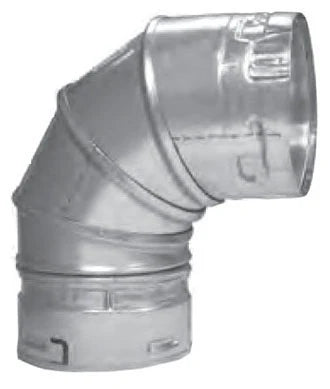

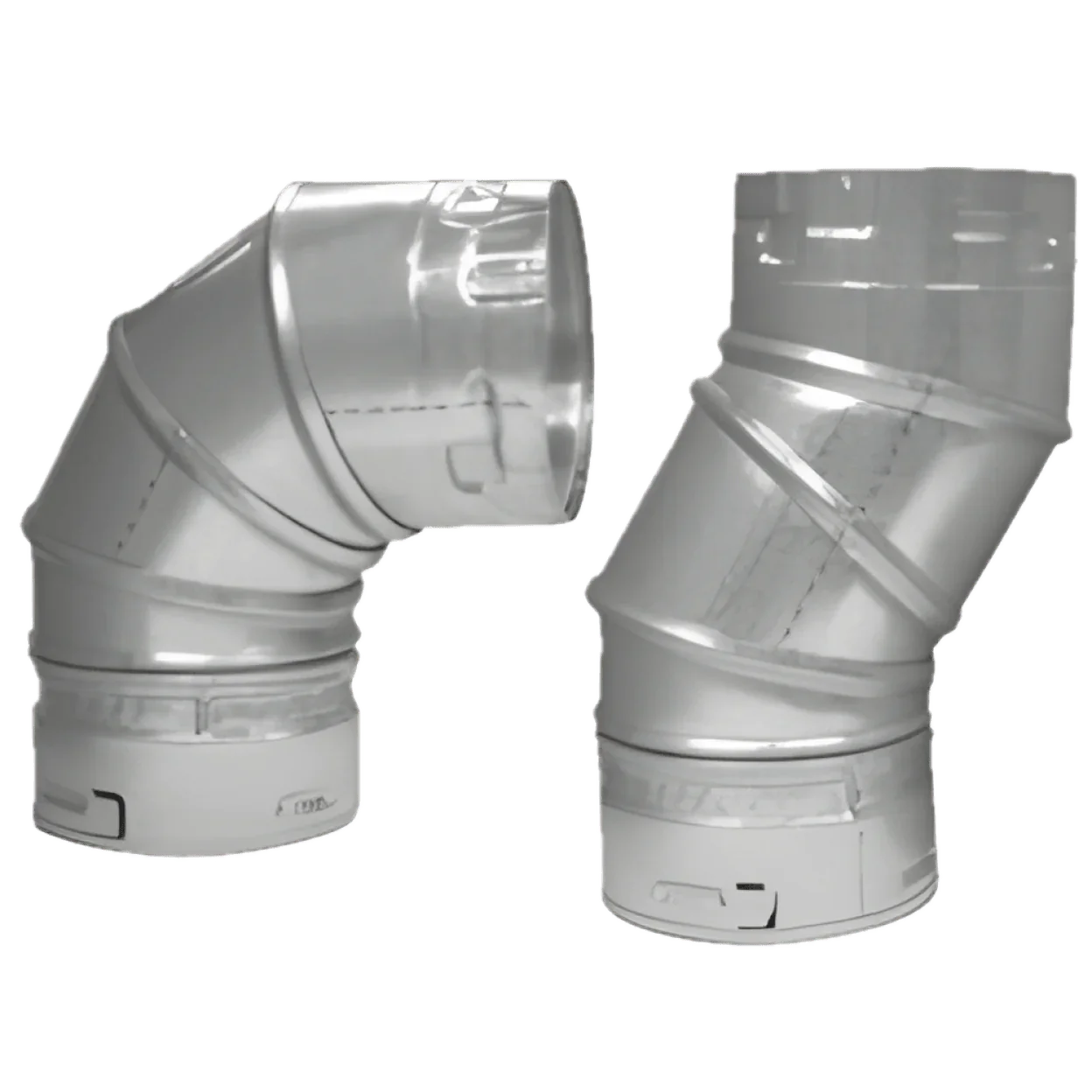

The Metal-Fab 5M90 is a reliable 90 degree adjustable double wall elbow designed for gas vent applications. It is made with a five-piece construction, ensuring durability and flexibility in installation. The adjustable angle allows for adaptation from straight to 90 degrees, making it suitable for various configurations of gas vent systems.
- Constructed from aluminum alloy and G90 galvanized steel.
- Compatible with type B gas vent systems.
- Features a rotating collar for easy orientation of vent pipes.
Product Highlights
This elbow is ideal for use with gas boilers, fireplaces, and furnaces.
Product Information
Standard Information
-
Manufacturer: Metal-Fab
-
Part Number: 5M90
Technical Specifications
-
Size: 5 inches
-
Angle: 90 degrees
-
Material: Aluminum alloy inner wall, G90 galvanized steel outer casing
-
Material Thickness: 0.012 inches (inner wall), 0.018 inches (outer wall)
-
Applicable Standard: UL 441, NFPA 54/211
-
Weight: 1.6 lbs
-
Length: 11 inches
-
Type: Adjustable, Double Wall
