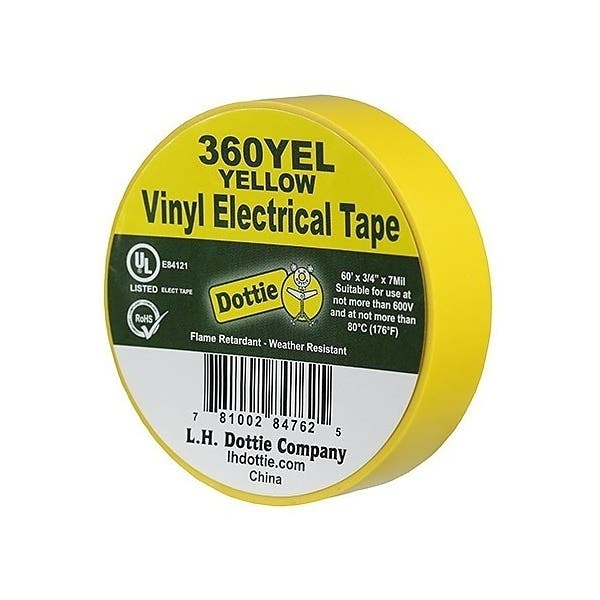

Dottie 360YEL 3/4in 60ft 7mil. Premium Color Coding PVC Tape

Product Description

The DOTTIE 360YEL is a 3/4in 60ft 7mil premium color coding PVC tape. This electrical tape is mainly used for protection and insulation over wires and connectors, splicing and filler compounds, wire harnessing and home maintenance, and the holding of high voltage electrical appliances. It is flame-retardant and performs well in all climates.

• Flame-Retardant
• Strong Tensile Strength
• Performs Well in All Climates
• Individual Cello Wrapped

Product Highlights

Premium color coding PVC tape for electrical insulation, wire harnessing, and home maintenance. Resistant to UV, acids, abrasion & corrosion.

Product Information

Standard Information

• Brand: DOTTIE
• Manufacturer Part Number: 360YEL
• Country of Origin: China

Technical Specifications

• Brand Name: Dottie
• Manufacturer Part Number: 360YEL
• Type: Color Coding Tape
• Size: 3/4'' x 60'
• Length (ft): 60'
• Width (in): 3/4''
• Thickness (in): .007''
• Thickness (mil): 7 mil
• Material: Polyvinyl Chloride
• Backing Material: Vinyl
• Tensile Strength: 7 KG/in
• Tensile Strength (N\cm): 27.5 N/cm
• Elongation: 2
• Applications: Marking, Identifying, Insulating,Wire Harnessing, Jacketing on High Voltage Splices
• Temperature Range: 32°F to 176°F
• Dielectric Strength: 1200 V/mil
• Voltage Rating (V): 600V
• Resistant to: UV, Acids, Abrasion & Corrosion
• Adhesion to Steel: 16 oz/in
• Adhesion to Backing: 16 oz/in
• For Use With: Wires, Connectors, Filler Compounds, & Electrical Appliances
• UV Resistance: Yes
• Special Features: Flame-Retardant, Strong Tensile Strength, Performs Well in All Climates, Individual Cello Wrapped
• Industry Standards: UL Listed
• RoHS Compliant: Yes
