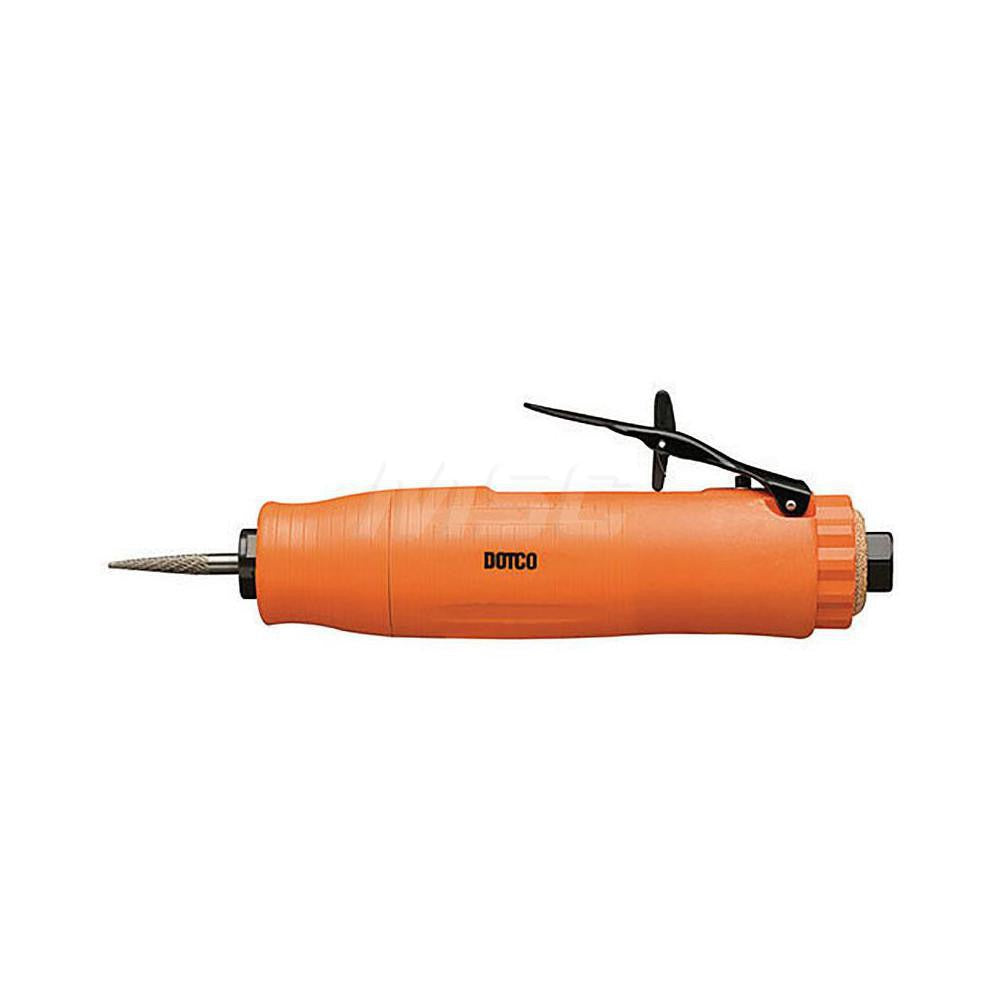

Dotco 12L2500-36 Air Die Grinder 0.9 Hp 23000 Rpm

Product Description

The DOTCO 12L2500-36 is a straight-handle air die grinder built for material removal, deburring, porting, and surface finishing in industrial and trade environments. It runs at 23,000 RPM and delivers 0.9 horsepower at 90 psi operating pressure, with an air consumption rate of 38 CFM. The 1/4 inch collet accepts standard die grinder bits, carbide burrs, and mounted grinding points. Front exhaust directs air away from the work surface and the operator. At 1.8 pounds, it is light enough for extended overhead or confined-space use. Machinists, fabricators, pipefitters, and maintenance mechanics are the primary users of this tool.

This grinder suits both shop and field applications where a pneumatic rotary tool is needed for metal, composite, or weld finishing work. Its lever throttle and straight handle provide repeatable speed control during fine grinding passes. Typical install scenarios include weld bead cleanup, port matching, gasket surface preparation, and burr removal on machined parts. A 1/4 inch NPT air inlet connects to standard shop air lines.

Key Features

• 23,000 RPM free speed for fast material removal with small-diameter tooling
• 0.9 HP motor output suitable for continuous-duty grinding and deburring
• 1/4 inch collet accepts widely available mounted points, burrs, and bits
• Front exhaust keeps debris and airflow directed away from the operator
• Lever-style throttle allows variable speed control during operation
• CE Certified and compliant with DIN EN ISO 12100 and Machinery Directive 2006/42/EC

Compatibility

Designed for use with standard 1/4 inch shank die grinder tooling and 1/4 inch NPT pneumatic supply lines operating at 90 psi.

Installation Notes

Installation and operation should be performed by a qualified technician familiar with pneumatic tool safety practices. Before connecting or disconnecting the tool, depressurize the air supply line and verify the inlet fitting is properly seated and leak-free. Ensure the air supply is filtered, lubricated, and regulated to 90 psi to maintain rated performance and tool longevity. Always inspect the collet and mounted accessory for secure engagement before operating at speed.
