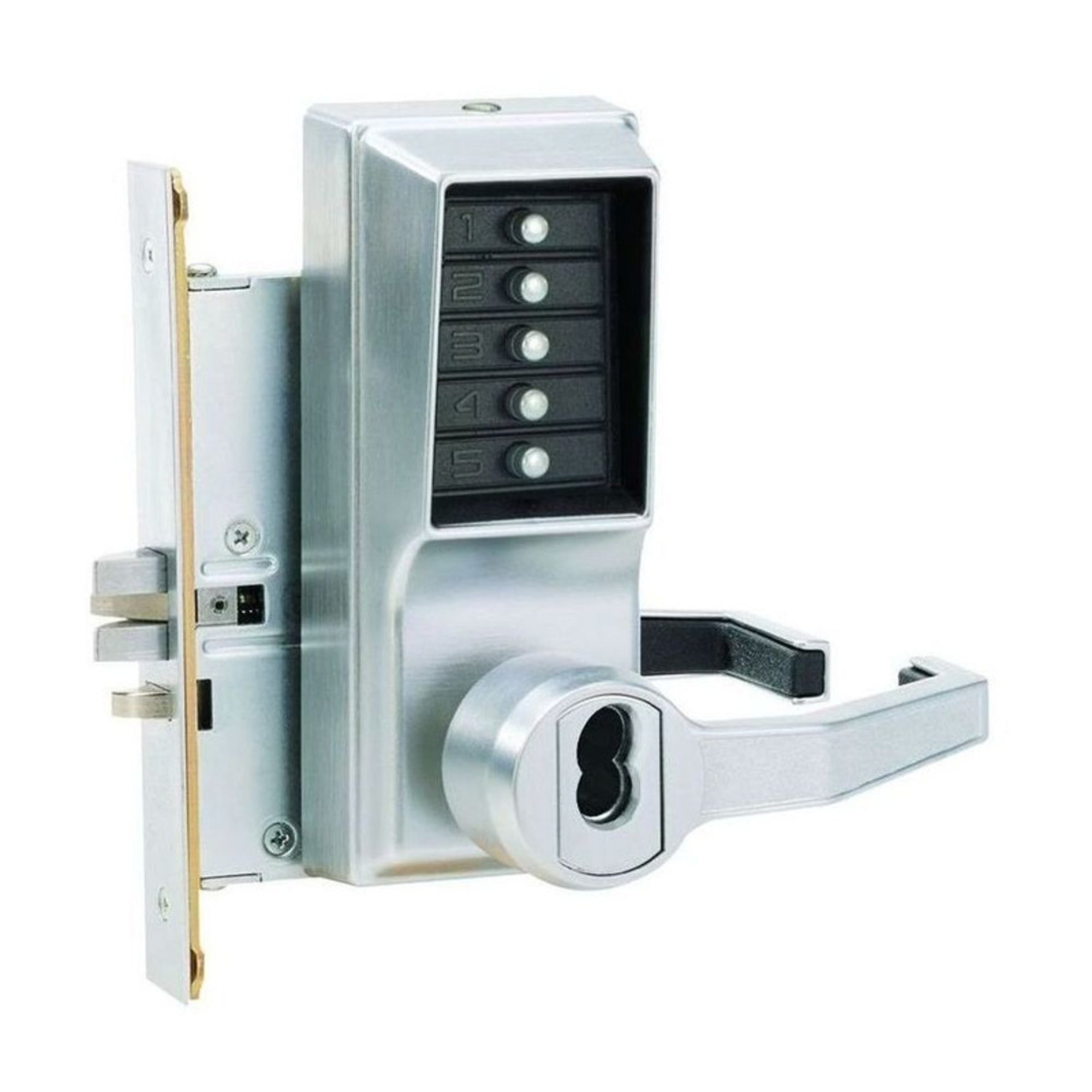

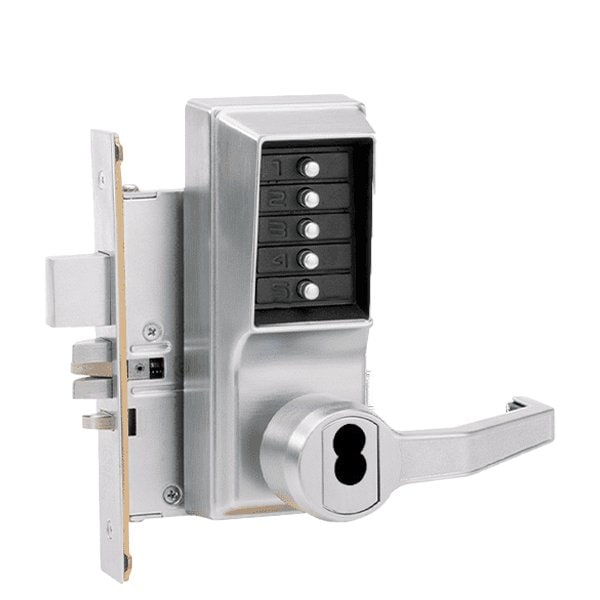

Dormakaba Rr8146b-26d-41 Simplex Mechanical Pushbutton Mortise Lock

Product Description

The DORMAKABA RR8146B-26D-41 Simplex mechanical pushbutton mortise lock eliminates the costs associated with managing keys and cards. The lock provides exterior access by combination and allows free egress. It is easily programmed via the keypad without removing it from the door. The lock is factory-handed and not field reversible.

• Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Lock is easily programmed via keypad without removing lock from the door

Product Highlights

This mortise lock provides a cost-effective access control solution with a vandal-resistant, solid metal pushbuttons and ADA-compliant levers.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: RR8146B-26D-41
• Country of Origin: United States

Technical Specifications

• Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Locking Device Options: Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch Mortise with ¾" (19 mm) two-piece anti-friction latch.
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Handed
• Key Override (Optional): Small format interchangeable cores, large format removable cores
• Operation Modes: Pushbutton Access
• Economical: A cost effective access control solution.
• Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Standard Finish: Satin Chrome 26D (626)
• Backset: 2¾" (70 mm)
• Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
• Minimum Stile Recommended: 5" (127 mm)
• Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
• Vendor - Manufacturer: DormaKaba
• SKU: RR8146B-26D-41
• UID: SIM100RR8146B26D41
• Unit of Measure: Each
• Base Material: Brass or Bronze
• Finish Description: Satin Chrome
• Series Name: Simplex
• Lock Platform: Mortise Lock
• Cylinder Type: SFIC Prep Less Core
• Product Type: Mortise Locks with Keypad Trim
• Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
• Finishes: US26D (626) Satin Chrome

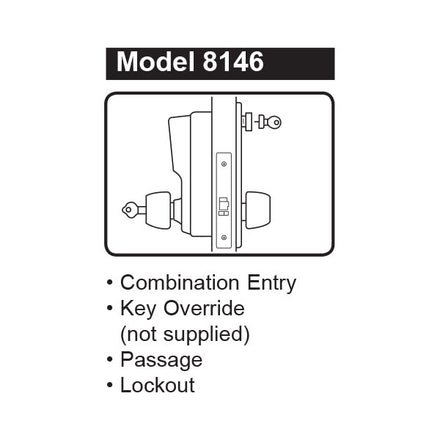

• Lock Function: Combination Entry/Passage Function with Key Override
• Key Override: B: 6/7-Pin SFIC Prep, M: Medeco/Yale/ASSA/Abloy LFIC Prep, R: Sargent LFIC Prep, S: Schlage FSIC Prep, C: Corbin Russwin LFIC Prep
• Usage: Heavy Duty
• Fire-Rating: UL and cUL Listed – up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Brand: Dormakaba
• Item dimensions L x W x H: 10.8 x 10.5 x 8.2 inches
• Material: Brass, Bronze, Chrome
• Number of Pieces: 1
• Included Components: Comb
• Model Number: RR8146B-26D-41
• Model Name: RR8146B-26D-41 16402361
• Manufacturer Warranty Description: No Warranty
• Manufacturer: DormaKaba
• Unit Count: 1.0 Count
• Special Feature: Push Button
