Dormakaba R8146B-26D-41 Simplex Pushbutton Mortise Lock w/ Lever Combination Entry-SFIC Best-Passage-Lockout

Product Description

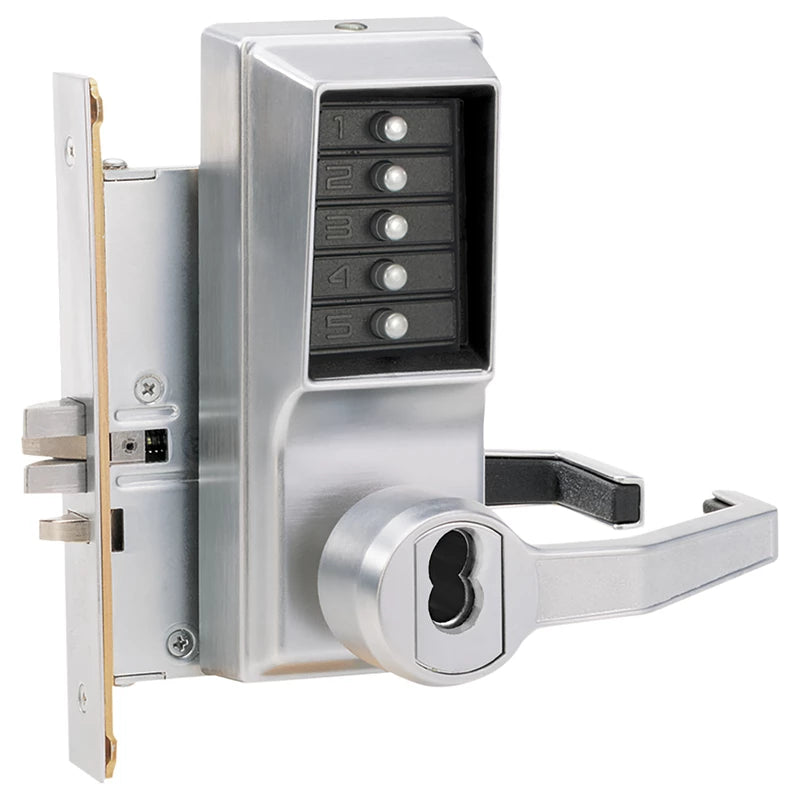

The DORMAKABA R8146B-26D-41 Simplex 8100 mechanical pushbutton lock offers exterior access via combination and free egress. The vandal-resistant numeric keypad features solid metal pushbuttons. This fully mechanical lock eliminates battery expenses. It features an easily programmed single access code, mortise with 3/4 in. two-piece anti-friction latch, and multiple operation modes.

• Numeric Keypad is vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

DORMAKABA's R8146B-26D-41 is a mechanical pushbutton lock with mortise locking, lever handle, and key override, ideal for controlling access in commercial settings.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: R8146B-26D-41

Technical Specifications

• Locking Device: Mortise with 3/4 in. two-piece anti-friction latch

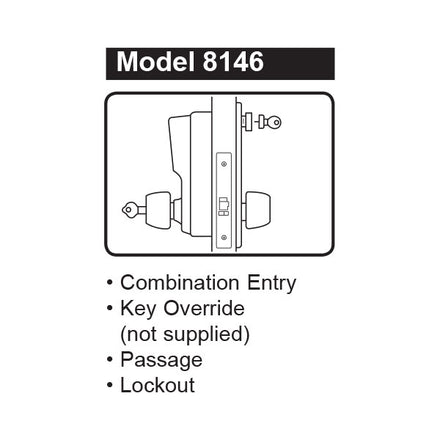

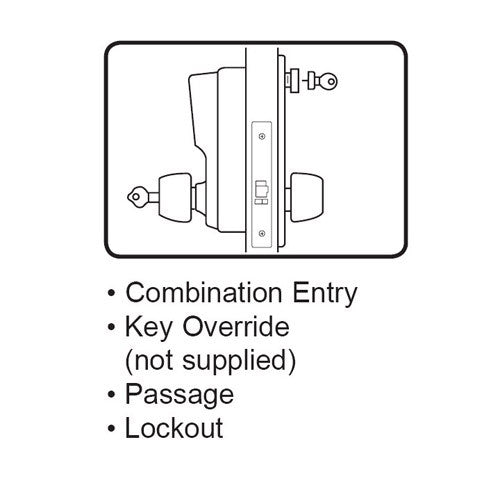

• Operation Modes: Pushbutton Access, Passage, and Lockout
• Backset: 2-3/4 inch
• Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Minimum Stile Recommended: 5 in.
• Strike: 4-7/8 in. x 1-1/4 in. x 1/4 in. Deadbolt/Latch mortise strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant levers
• Fire Rating: 3-hour UL/ULC fire rating for A-labeled doors
• Durability: Weather resistant
• Series: Simplex 8100 Series
• Vendor: DormaKaba
• Manufacturer: DormaKaba
• Base Material: Brass or Bronze
• Installation: Commercial
• Finish Family: Matte Silver
• Cylinder Type: SFIC Prep Less Core
• Lock Platform: Mortise Lock with Keypad Trim
• Details: Provides exterior access by combination, while allowing free egress.
• Construction: Cast front housing; unified trim plate; fixed ADA compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Latch: (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
• Key Override: Interchangeable Cores: Small format Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Finishes: US26D (626) Satin Chrome
• Lock Function: Combination Entry/Passage Function with Key Override
• Usage: Heavy Duty
• Handing: Handed
• Latch Type: Two Piece Anti-Friction Latch
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Fire-Rating: UL and cUL Listed up to 3 Hours
• Model: R8146B-26D-41
• Function: Mortise Lock
• Finish: Satin Chrome (US26D/626)
• Grade: ANSI/BHMA Grade 1
• Latch Throw: 3/4 in. deadbolt
• Hand: Right Hand
• Color: Satin Chrome
• Color Code: 626/US26D
• Package Qty: 1
• Special Marks: Complies with ADA accessibility guidelines
• Finish Description: Satin Chrome
• Product Type: Push Button Lock
• Series Name: Simplex
• Strike Size: 4-7/8" x 1-1/4"
• Manufacturer Parent: DormaKaba
• Sub-Series: R8146-B-26D-41
• Handle Type: Lever
• Function Family: Pushbutton Lock
• Latch Size: 3-1/4 Inch
• Standards: UL/ULC Fire Rating

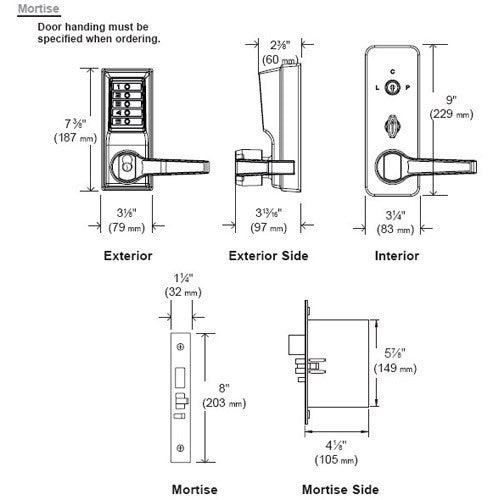

• Rose/Escutcheon Width: 3-1/8" (Exterior); 3-1/4" (Interior)
• Number of Pins: 6 or 7
• Product Projection: 3-13/16 Inch
• Deadbolt Size: 1 Inch
• Rose/Escutcheon Length: 7-3/8" Exterior; 9" Interior
• Cylinder Type Used: Small Format Interchangeable Core
• Alternate Part Number-1: 179770
