Dormakaba QET130E626 Sierra Passage Escutcheon Lever Trim

Product Description

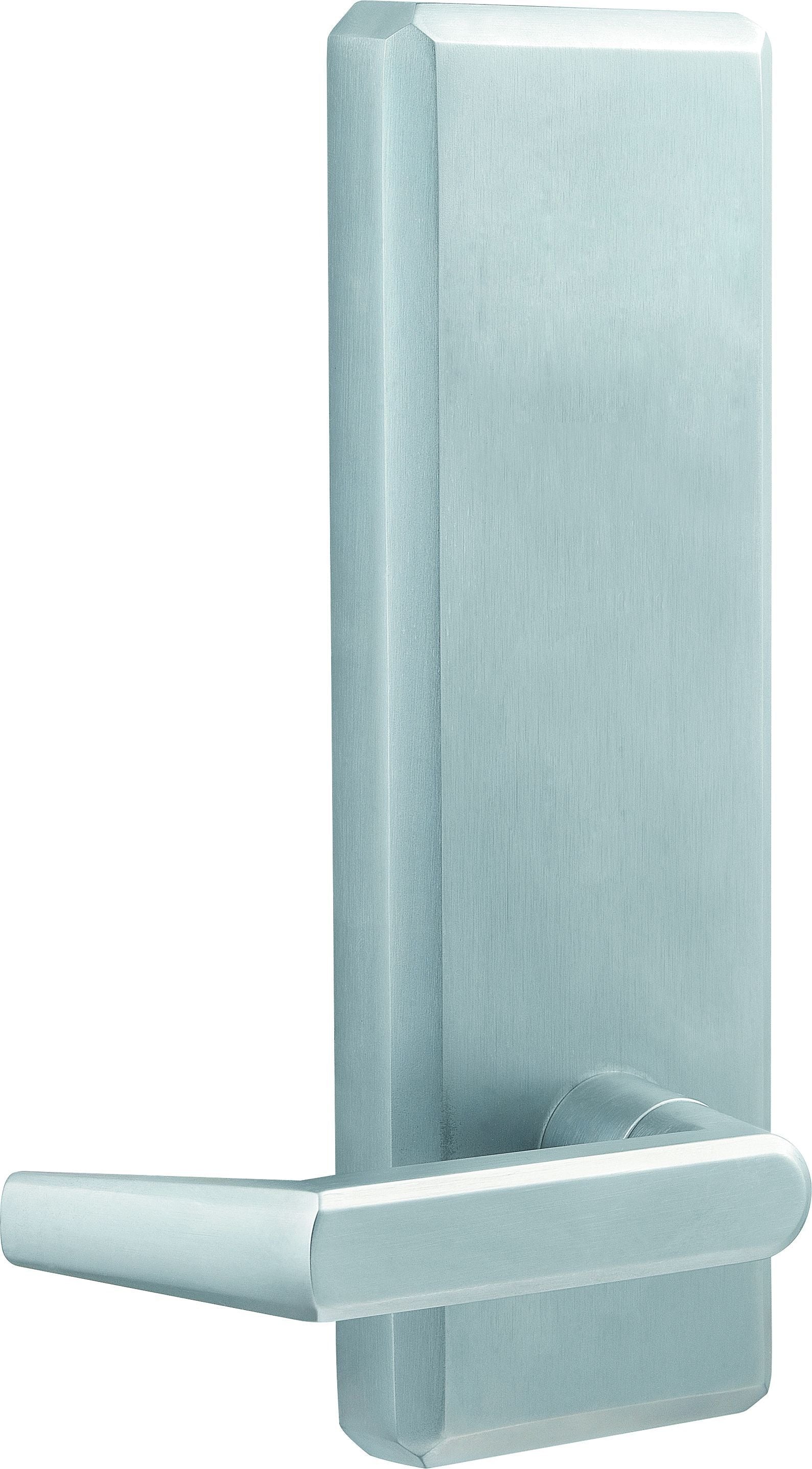

The DORMAKABA COMMERCIAL HDWE QET130E626 is a Sierra series passage escutcheon lever trim finished in satin chrome. Designed for commercial door hardware applications, this trim component pairs with compatible exit device bodies to provide a lever-operated passage function — no key required from either side. The satin chrome finish delivers a clean, professional appearance suited to high-traffic commercial environments. Measuring 9.5 inches in length, 6 inches in width, and 3.9 inches in height, this trim is sold as an individual unit and is intended for installation by qualified door hardware technicians or licensed locksmiths.

This escutcheon lever trim is designed for commercial interior doors where free passage is required, such as corridors, stairwells, and common areas. It is commonly specified in office buildings, schools, healthcare facilities, and other commercial construction projects where exit device trim must meet both functional and aesthetic requirements. The passage configuration allows unrestricted movement through the door without the need for credentials, making it appropriate for non-secured openings in commercial settings.

Key Features

• Passage function — no key or credential required for operation from either side
• Satin chrome finish suited for professional commercial interiors
• Sierra series escutcheon lever design for a clean, low-profile appearance
• Dimensions of 9.5 x 6 x 3.9 inches for standard commercial door applications
• Sold individually, with a case quantity of 6 units available

Compatibility

Designed as an OEM-style commercial trim component for use with compatible exit device bodies requiring an escutcheon-style lever trim in a passage configuration.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician familiar with exit device trim assemblies. Ensure the door and exit device body are fully depressurized and in a safe, non-latched state before beginning trim installation. Refer to applicable building codes, including NFPA 80 for fire-rated door assemblies, when specifying or installing passage hardware on rated openings. Do not modify the lever trim or escutcheon body, as alterations may affect code compliance and device function.
