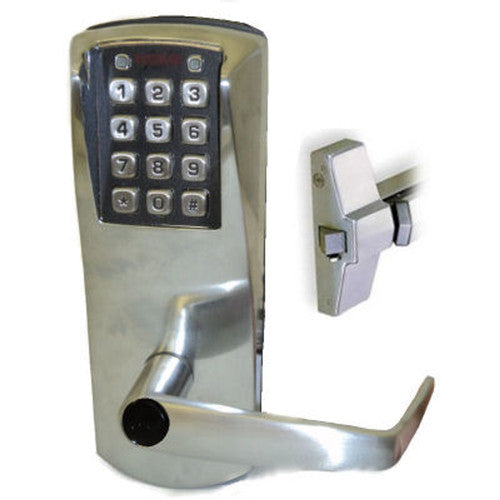

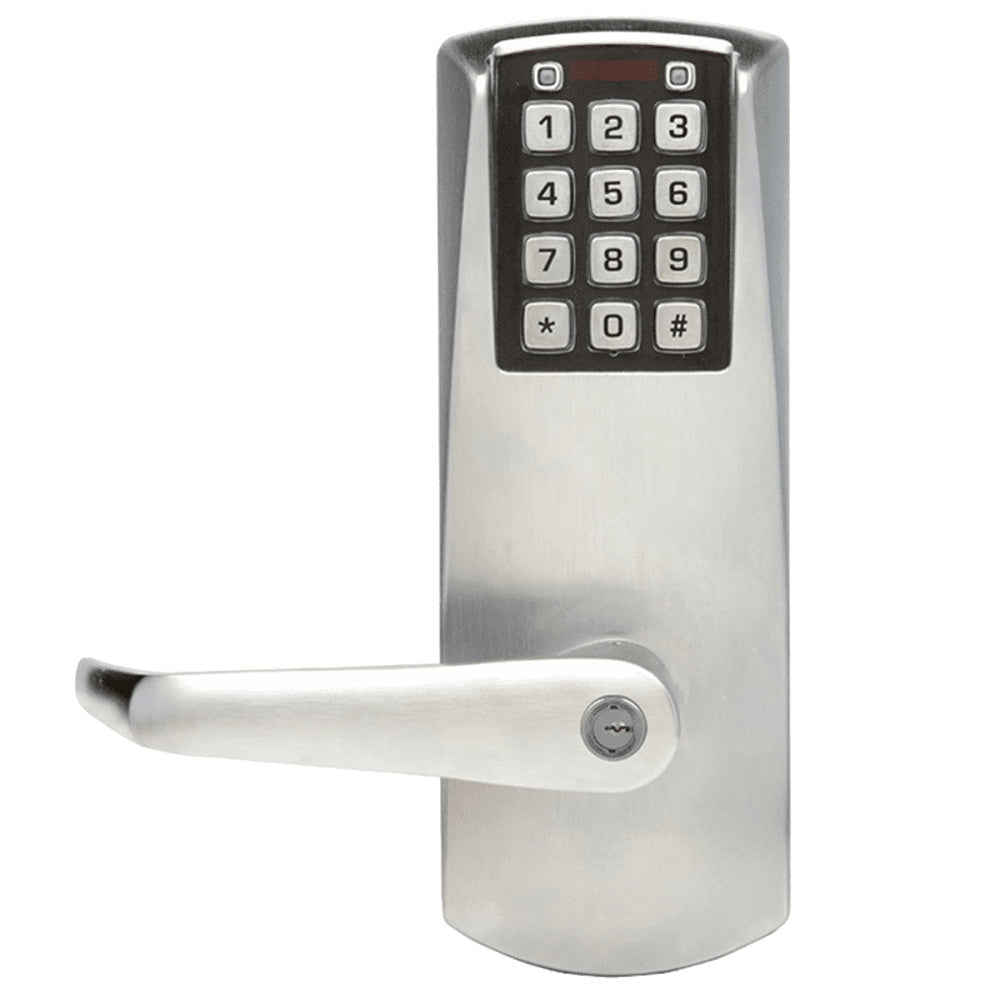

Dormakaba P201UXSLL-626 Powerplex Exit Trim with Schlage C Key Override

Product Description

The DORMAKABA P201UXSLL-626 Powerplex Exit Trim provides secure, code-compliant emergency exit hardware with key control. It supports 100 users with millions of possible code choices. The exit trim is compatible with Detex, Von Duprin, Precision, Arrow, and Sargent exit devices and features a rugged clutch mechanism for long life and durability.

• Self-Powering with PowerStar Technology eliminates the need for batteries.
• Enter a 4-8 digit PIN sequence and turn the lever to open the door.
• Offers PIN access, lockout, and passage operation modes.

Product Highlights

This exit trim is perfect for office buildings and retail spaces, providing a reliable solution for single or double exit doors.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: P201UXSLL-626

Technical Specifications

• Access Codes/Capacity: 100 User Codes
• Certifications / Listings: A156.25 A156.2 A156.13 A156.3 ADA Compliant
• Cylinder: 6-Pin Rim Cylinder
• Environment - Rating/Temperature: -31 to 151 F (-35 to 66 C)
• Fail Safe/Secure: Fail Secure
• Industry Finish: US26D/626 Satin Chrome
• Keyway: Schlage C
• Manufacturer: dormakaba
• Operation Modes: Locked or Passage
• Strike Type: 1-1/4" X 4-7/8"
• Time Interval: 2 To 20 Seconds
• Type - Additional Info: Cylindrical
• Voltage/Current/Power: Self Powered
• Wireless: Yes
• Installation: Commercial
• Base Material: Brass or Bronze
• Finish Description: Satin Chrome
• Series Name: PowerPlex
• Lock Platform: Exit Device Trim
• Cylinder Type: Conventional Cylinder
• # Pins: 6
• Product Type: Rim Exit Trim with Keypad
