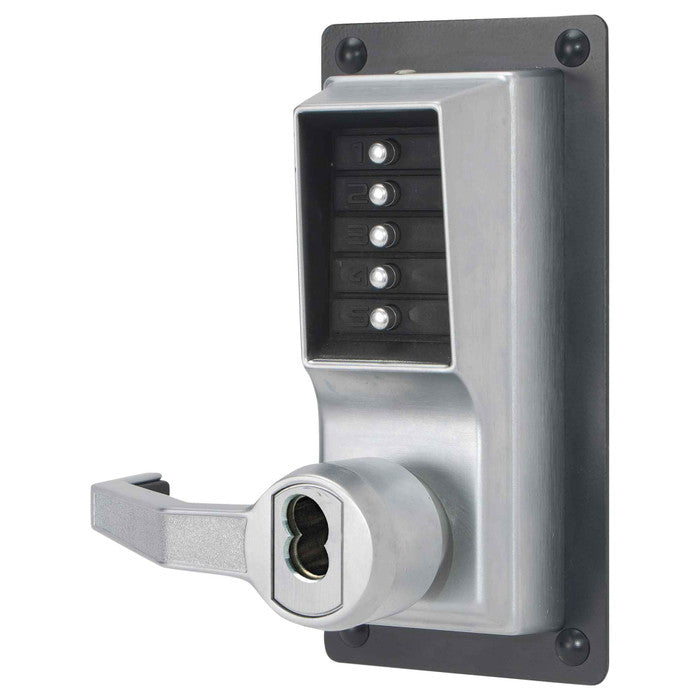

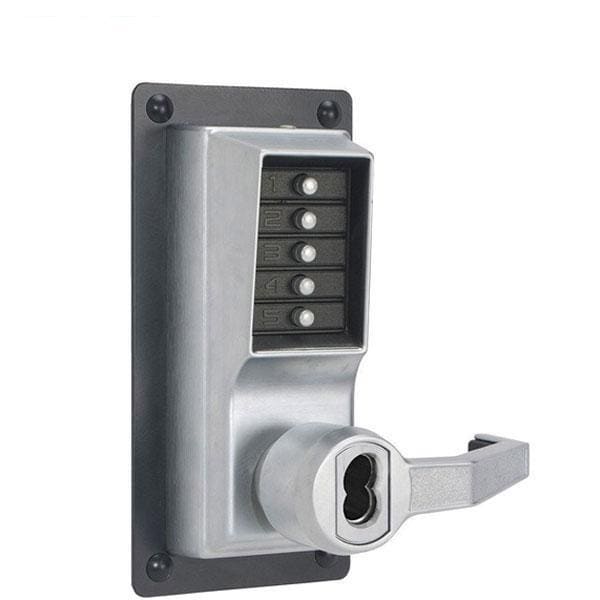

Dormakaba LRP1020S-26D-41 Simplex Exit Trim Pushbutton Lock w/ Lever Combination Entry LFIC Schlage

Product Description

The DORMAKABA LRP1020S-26D-41 Simplex Exit Trim provides exterior access by combination while allowing free egress with an exit device (not supplied). This fully mechanical lock eliminates battery replacements and has an easily managed single access code. The lock is easily programmed via the keypad without removing it from the door.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Compatible with most leading brands of Exit Devices

Product Highlights

This vandal-resistant, weather-resistant lock features a heavy-duty cast front housing and is ADA compliant. It has a 3-hour UL/ULC fire rating for "A" labeled doors.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LRP1020S-26D-41
• Country of Origin: United States

Technical Specifications

• SFIC: Best and Equivalents (6 or 7-pin length) Core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant lever
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Brand: dormakaba
• MPN: LRP1020S-26D-41
• Condition: New
• Country of Origin: United States
• Series: Simplex LP1000 Series
• Grade: Grade 1
• Product Subgroup: Exit Devices Trim
• Product Type: Simplex Mechanical Push Buttons Locks
• Subcategory: Push Buttons Locks
• Stile Width: 5"
• Keyed: Yes
• Commercial/Residential: Commercial
• Compatibilty: Compatible with most leading brands of Exit Devices - see list below (Exit Device and mounting hardware not included)
• Features: Vandal resistant, solid metal pushbuttons
• Handle Type: Lever
• UL Listing Type: 3-hour UL/ULC fire rating for "A" label doors
• Stile Type: Wide Stile
• Lock Function: Combination Entry Function With Key Override
• Lock Type: Exit Device Trim
• Segment: Door Hardware
• Product Model: LP1020
• Product Function: Exit Trim
• Door Hand Direction: Right Hand or Right Hand Reverse / Left Hand or Left Hand Reverse
• Door Thickness Range: 1-3/8" to 2-1/4"
• Door Strike: Sold with exit device (sold separately)
• Product Category: Exit Devices and Trim
• Department: Door Hardware
• Function: Combination Entry and Key Override
• Key Override Options: R/C Schlage
