Dormakaba Lr8148s-26d-41 Simplex Pushbutton Mortise Lock With Lever Schlage Core Override

Product Description

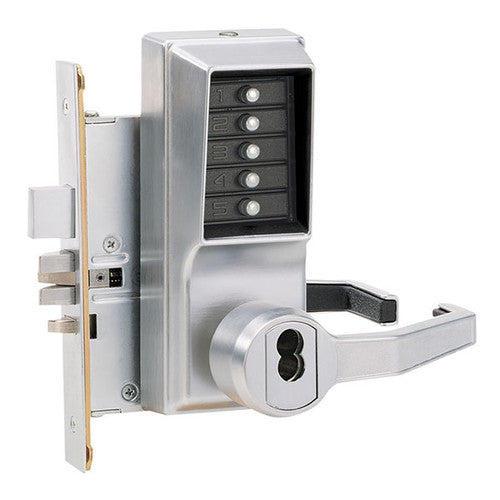

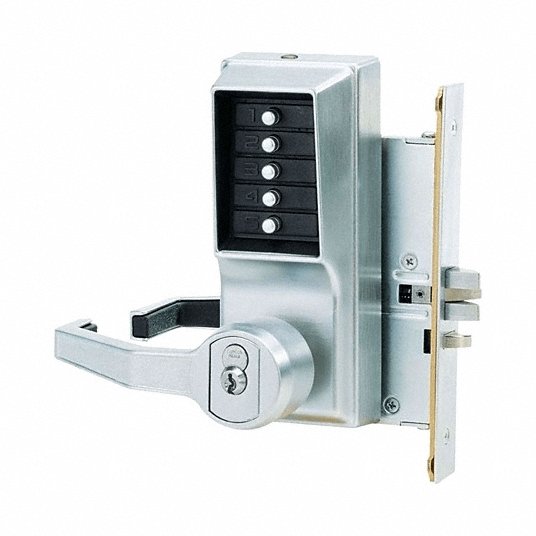

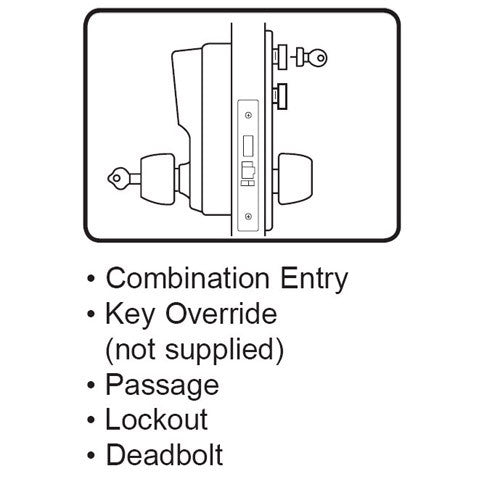

The Dormakaba LR8148S-26D-41 is a mechanical pushbutton lock providing combination-based access control without batteries or wiring. It is built for commercial applications where reliability matters. The lock provides exterior access by combination, while allowing free egress. It has a deadbolt feature for added security.

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door

Product Highlights

This vandal-resistant, weather-resistant lock has an ADA-compliant lever design and is UL/ULC fire rated. Prepped for Schlage SFIC key override; core sold separately.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR8148S-26D-41
• Country of Origin: USA

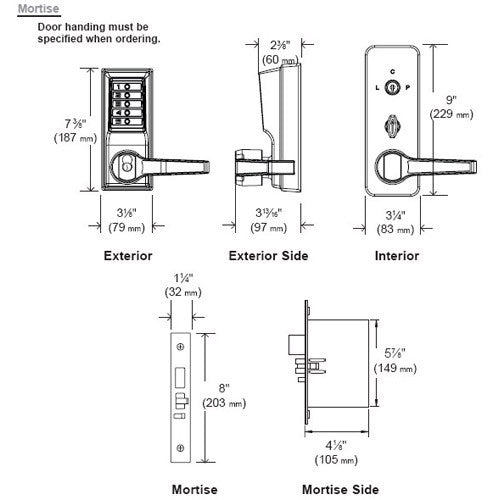

Technical Specifications

• Model: LR8148S-26D-41
• Series: Simplex 8100 Series
• Function: Mortise Lock
• Finish: Satin Chrome (US26D/626)
• Grade: ANSI/BHMA Grade 1
• Backset: 2-3/4 in. (70mm)
• Latch Throw: 3/4 in. deadbolt
• Door Thickness: 1-3/4 in. to 2-1/4 in.
• Handing: Right Hand (factory handed)
• Fire Rating: 3-hour UL/ULC
• Key Override: Schlage SFIC (core not included)
• Locking Device: Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latch
• Construction: Cast front housing; unified trim plate; fixed ADA compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Standard Finish: Satin Chrome 26D (626)
• Latch: (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
• Minimum Stile Recommended: 5" (127 mm)
• Strike: 4 (124 mm) L x 1 (32 mm) W x (6 mm) D Deadbolt/Latch mortise strike plate
• Brand: Dormakaba Mechanical
• SKU: LR8148S-26D-41
