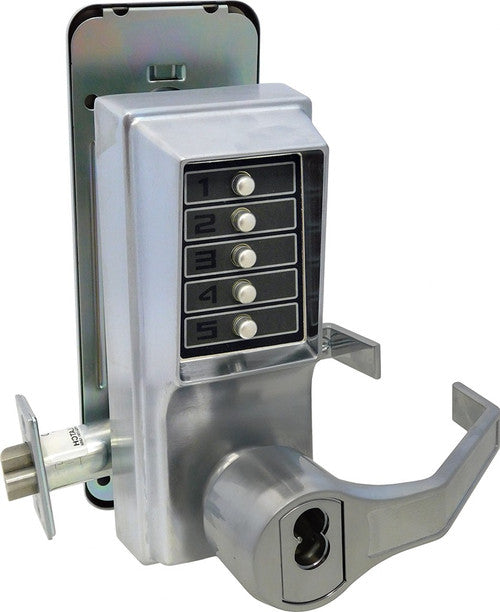

Dormakaba LR1021C-26D-41 Simplex Pushbutton Lever Lock Prepped for Corbin Core Override

Product Description

The DORMAKABA LR1021C-26D-41 Simplex Pushbutton Lock eliminates the costs of managing keys and cards, providing exterior access via combination and free egress. This vandal-resistant hardware features a Grade 1 rating from ANSI. It grants entry upon validation of a 1 to 5 digit code. It is widely accepted in high-traffic commercial, institutional, and government buildings.

• Satin Chrome Finish
• 100% push-button lock
• Keyless Lock thats simple to install, use and maintain

Product Highlights

DORMAKABA LR1021C-26D-41 is a keyless, ADA compliant lock with a cylindrical latch and key override, easy to program and install on wood or metal doors.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1021C-26D-41
• Country of Origin: United States

Technical Specifications

• Brand: dormakaba
• MPN: LR1021C-26D-41
• Country of Origin: United States
• Handing: Right Hand or Right Hand Reverse Only, (factory handed, not field reversible)
• ADA-compliant lever: ADA-compliant lever
• Finish: 26D Satin Chrome (626)
• Keying: Corbin Russwin Key Override (less core)
• Function: Cylindrical Lock, Combination Entry, Cipher Lock, Corbin Russwin Key Override (less core)
• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Cylindrical: -Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Manufacturer: DormaKaba
• SKU: LR1021C-26D-41
• UID: SIM100LR1021C26D41
• Installation: Commercial
• Unit of Measure: Each
• Base Material: Brass or Bronze
• Fire Rated: 3 Hours {A}
• ADA Compliance: Yes
• Finish Description: Satin Chrome
• Finish Family: Matte Silver
• Series Name: Simplex
• Lock Platform: Cylindrical Lock
• Access Function: Field Configurable
• Keypad Type: Mechanical
• Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
• Hand: Right Hand/Right Hand Reverse
• Door Thickness: 1-3/8" to 2-1/4"
• Latch Backset Dimension: 2-3/4"
• Strike Type: ASA
• Product Type: Cylindrical Locks with Keypad Trim
