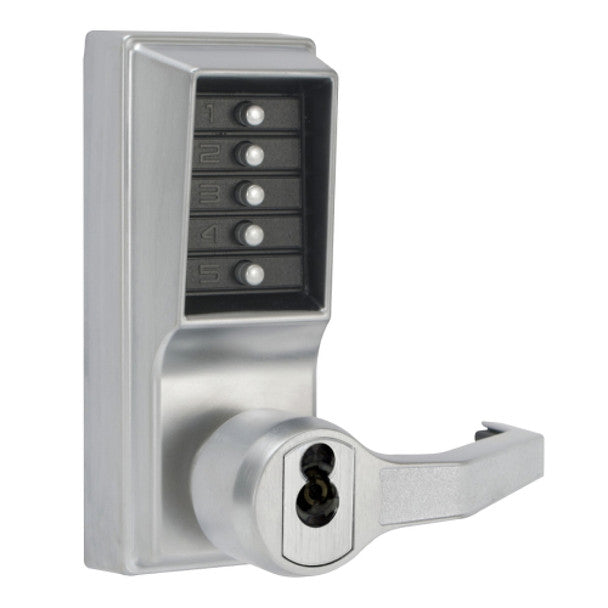

Dormakaba LR1021B-26D-41 Kaba Push Button Lock RH/RHR, Best Prepped

Product Description

The DORMAKABA LR1021B-26D-41 Simplex mechanical push button lock offers combination entry prepped for Best (sfic) Key Override (less core). This cylindrical lock controls both entry and egress with a single access code and an ADA-compliant lever. It features a 2-3/4" backset and a 1/2" throw latch.

• Single access code for all users
• Easily programmed via keypad without removing lock from the door
• 3-hour UL/ULC fire rating for "A" label doors

Product Highlights

DORMAKABA LR1021B-26D-41 is a mechanical push button lock with combination entry, key override, and ADA-compliant lever.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LR1021B-26D-41

Technical Specifications

• Handing: Right Hand or Right Hand Reverse Only
• Finish: 26D Satin Chrome (626)
• Keying: Best and Equivalents (6 or 7-pin length) less core
• Function: Cylindrical Lock, Combination Entry, Best and Equivalents (6 or 7-pin length) less core
• Locking Device: Cylindrical Deadlatch
• Backset: 2-3/4"
• Latch Throw: 1/2"
• Cylinder Prep: 6/7-Pin SFIC
• Installation: Commercial
• Fire Rating: 3 Hours
• ADA Compliance: Yes
• Std. Strike Type: ASA
• Cylinder Type: SFIC Prep Less Core
• Lever/Knob Design Family: Curved Return Lever
• Lock Platform: Cylindrical Lock with Keypad Trim
• Latch Backset Dimension: 2-3/4"
• Access Function: Field Configurable
• Keypad Type: Mechanical
• Series Name: Simplex
• Door Thickness: 1-3/8" to 2-1/4"
• Combinating: SFIC - Small Format Interchangeable Core
• Design Style: Lever
• Door Prep: 2-1/8" x 1" with 1" Hole for Combination Change and two 1/4" Holes for Mounting Bolts
• Door Type: Wood or Metal
• Environment Rating: Highly Weather Resistant
• Grade: Grade 1 - Heavy Duty Commercial
• Industry Finish: US26D/626 Satin Chrome
• Key Override: Small Format Interchangeable Core (SFIC) 6 or 7Pin (Core not Included)
• Keyway: Less Core
• Knob/Lever: Lever
• Pin Access: Single Code 1 - 5 Digits (Pressed Individually or Simultaneously)
• Pinning: 6-Pin or 7-Pin - Less Core
• Series: 1000
• Standards / Ratings: ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for "A" Label Doors
• Strike Type: ASA 4-7/8"
• Type - Additional Info: Cylindrical
