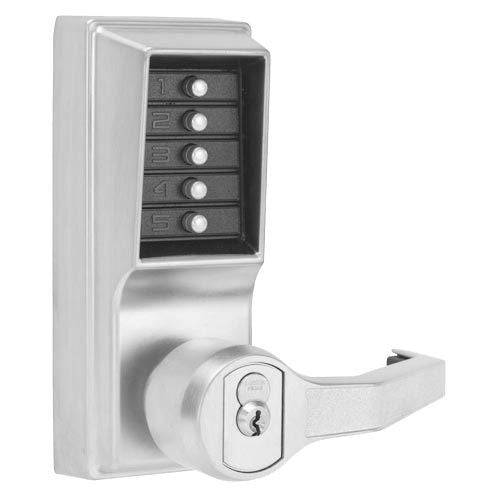

Dormakaba LL1041B-26D Pushbutton Lock Key/Pass LH LHR

Product Description

The DORMAKABA LL1041B-26D from the 1000 family offers a way to protect your assets. This heavy-duty lock is dependable and flexible. It has a single access code, and is easily programmed via keypad without removing it from the door. It is factory-handed and not field reversible.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Factory-handed; not field reversible

Product Highlights

The DORMAKABA Simplex LL1041B-26D is a mechanical pushbutton lock with a single access code, key override, and passage mode. It's ADA compliant and has a 3-hour UL/ULC fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1041B-26D-41

Technical Specifications

• Handing: Left Hand or Left Hand Reverse Only, (factory handed, not field reversible)
• ADA-compliant lever: Mechanical Lock, No Batteries needed
• Keying: Best SFIC Prep, (less core)
• PIN Access: Mechanical Pushbutton Lock – Cipher Lock - Control Both Entry/Egress - Single Access Code – Cylindrical - Lever
• Function: Cylindrical Lock, Combination Entry, Key Override and Passage Mode
• Locking Device Option: Cylindrical 1/2” (13mm) throw latch, floating face plate
• Key Override Options: Small Format I/C, Best and Equivalents (6 or 7-pin Length), core not included.
• Finish: Satin Chrome
• Lock Type: Cylindrical lock
• Fire Rating: 3-hour UL/ULC fire rating on "A" labeled doors
• Key Override: Best and Equivalents (6 or 7-pin length) as key override feature; core not included
• Minimum Stile: 5" (127 mm)
• Face Plate: Floating face plate
• Cylindrical Throw Latch: 1/2 inch (13 mm) throw latch
• Backset: 2-3/4 inch (70 mm)
• Warranty: 3 years manufacturer warranty
