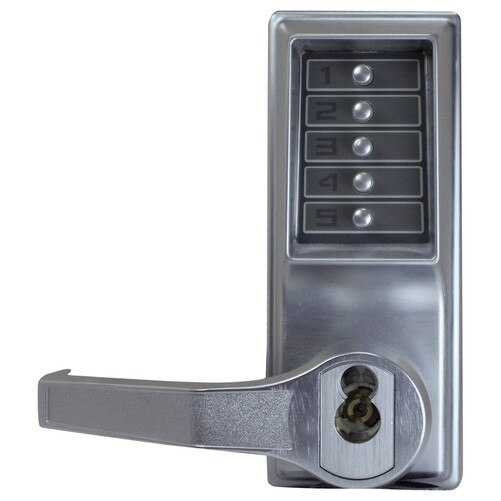

Dormakaba LL1021S-26D-41 Simplex Lock Schlage Prepped

Product Description

The Dormakaba LL1021S-26D-41 Simplex push button cylindrical lever lock offers combination entry and is prepped for Schlage IC key override (less core). This mechanical pushbutton lock provides convenient access control without the need for batteries, keys, or cards. Combinations can be changed in seconds without removing the lock.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Factory-handed; not field reversible

Product Highlights

Mechanical pushbutton lock with single access code, easy programming, and factory-handed design for convenient access control.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1021S-26D-41

Technical Specifications

• Product Code: LL1021S-26D-41
• Handing: Left Hand or Left Hand Reverse Only, (factory handed, not field reversible)
• ADA-compliant lever: ADA-compliant lever
• Mechanical Lock: No Batteries needed
• Finish: 26D Satin Chrome (626)
• Keying: Schlage Removable Core Prep, (less core)

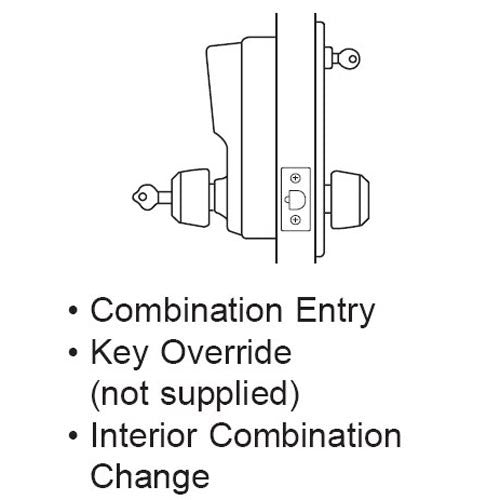

• Function: Cylindrical Lock, Cipher Lock, Combination Entry, Schlage Key Override (less core)

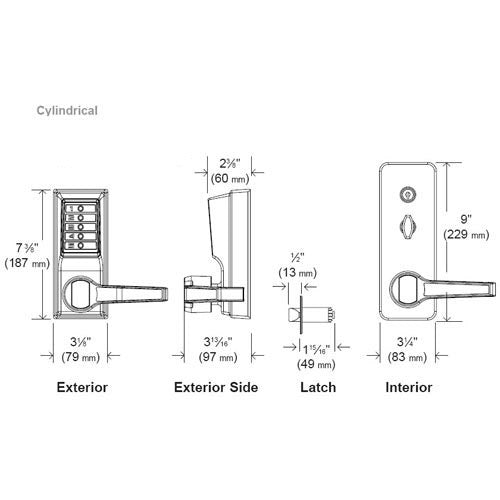

• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Operation Mode Options: Single credential access
• Certification and Standards: Americans with Disabilities Act (ADA) Compliance with D.O.D. 5220.22M; Highly weather resistant 3-hour UL/ULC fire rating for "A" label doors
• Series: Simplex L1000 Series
• Grade: ANSI/BHMA Grade 1
• Backset: 2-3/4 in. (70mm)
• Latch Throw: 1/2 in. (13mm)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Fire Rating: 3-hour UL/ULC
• Key Override: Schlage SFIC (core not included)
