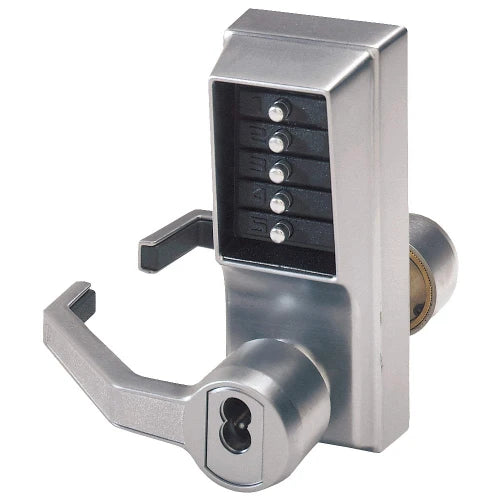

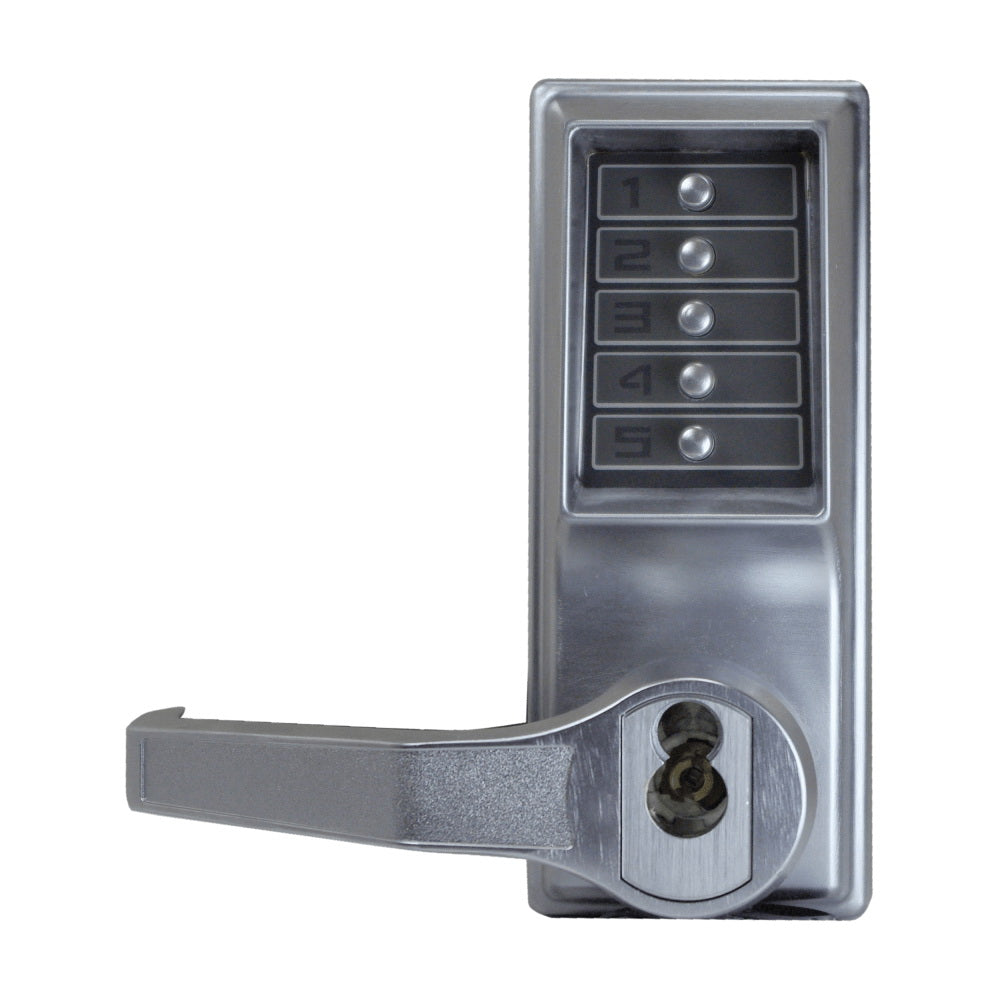

Dormakaba LL1021B-26D-41 Simplex Push Button Lock SFIC Best Prepped

Product Description

The DORMAKABA LL1021B-26D-41 Simplex Push Button Lock offers combination entry and is prepped for Best (SFIC) key override. This mechanical push button lock provides a convenient way to control access without the need for keys, cards, or batteries. Combinations can be changed in seconds without removing the lock.

• Single access code for all users
• Easily programmed via keypad without removing the lock
• Factory-handed; not field reversible

Product Highlights

This DORMAKABA Simplex lock is ADA compliant, highly weather resistant, and has a 3-hour UL/ULC fire rating.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1021B-26D-41

Technical Specifications

• Product Code: LL1021B-26D-41
• Handing: Left Hand or Left Hand Reverse Only, (factory handed, not field reversible)
• ADA-compliant lever: Yes
• Locking Device: Cylindrical 1/2 (13mm) throw latch, floating face plate 2-3/4 (70mm) backset (UL listed)
• Function: Cylindrical Lock, Cipher Lock, Combination Entry, Best and Equivalents (6 or 7-pin length) less core
• Keying: Best and Equivalents (6 or 7-pin length) less core
• Finish: 26D Satin Chrome (626)
• Brand: Kaba
• Manufacturer: DormaKaba
• SKU: LL1021B-26D-41
• UID: SIM100LL1021B26D41
• Installation: Commercial
• Base Material: Brass or Bronze
• Fire Rated: 3 Hours {A}
• ADA Compliance: Yes
• Finish Description: Satin Chrome
• Finish Family: Matte Silver
• Series Name: Simplex
• Lock Platform: Cylindrical Lock
• Access Function: Field Configurable
• Keypad Type: Mechanical
• Cylinder Type: SFIC Prep Less Core
• Hand: Left Hand/Left Hand Reverse
• Door Thickness: 1-3/8" to 2-1/4"
• Latch Backset Dimension: 2-3/4"
• Strike Type: ASA
• Product Type: Cylindrical Locks with Keypad Trim
