Dormakaba LL1011-26D-41 Kaba Mechanical Push Button Lock LH-LHR

Product Description

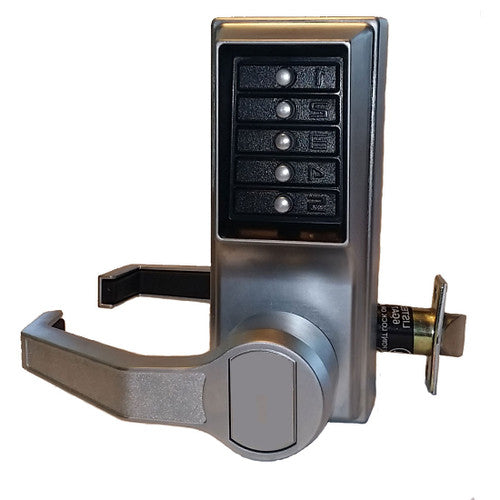

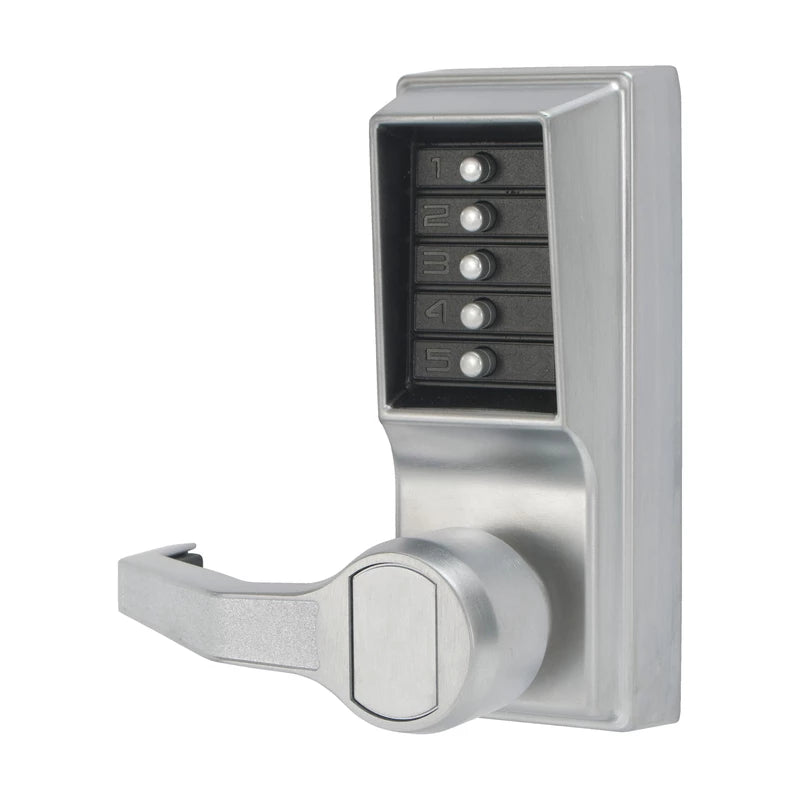

The DORMAKABA LL1011-26D-41 is a Simplex mechanical pushbutton lock with combination entry and an ADA compliant lever. This cylindrical lock features a single access code, is easily programmed via the keypad, and doesn't require removal from the door for programming. It is factory-handed and not field reversible.

• Single access code—one easy to manage code for all users
• Lock is easily programmed via keypad without removing lock from the door
• Factory-handed; not field reversible (LL1011/LR1011)

Product Highlights

Mechanical pushbutton lock with single access code, easy programming, and durable construction.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: LL1011-26D-41

Technical Specifications

• Finish: 26D Satin Chrome (626)
• Handing: Left Hand or Left Hand Reverse
• Function: Cylindrical Lock, Combination Entry Only, No Key Override
• Locking Device: Cylindrical 1/2 throw latch, floating face plate 2-3/4 backset (UL listed)
• Operation Mode: Pushbutton Access
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Minimum Stile Recommended: 5 in.
• Fire Rating: 3-hour UL/ULC fire rating on A-label doors
• Certification and Standards: Americans with Disabilities Act (ADA) Compliance with D.O.D. 5220.22M; Highly weather resistant 3-hour UL/ULC fire rating for "A" label doors
