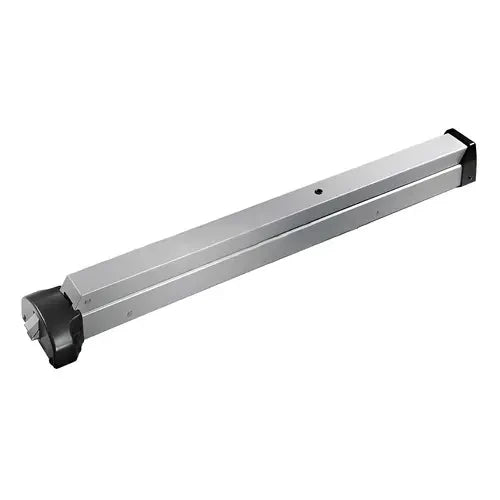

DORMAKABA Dormakaba F8300B-689 rim exit device 36-inch (Size B)
DORMAKABA Dormakaba F8300B-689 rim exit device 36-inch (Size B)

Dormakaba F8300B-689 rim exit device 36-inch (Size B)

Brand: DORMAKABA
SKU: F8300B 689
Availability: In Stock

Ships same day if ordered by 12 pm
$615.33
$615.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Dormakaba F8300B-689 is a fire-rated rim exit device configured for exit-only applications. It is UL listed for 3-hour labeled fire doors and meets ANSI/BHMA A156.3 Grade 1 and NFPA 101 life safety code. The non-handed, wide-stile 36-inch (Size B) device fits 1-3/4" to 2-1/4" doors and uses a deadlocking latch with a 3/4" throw and full-length touchbar for egress on wood or steel doors.

  • UL listed 3-hour fire-rated, ANSI/BHMA A156.3 Grade 1, NFPA 101 compliant
  • 36-inch wide-stile rim device, fits 1-3/4" to 2-1/4" doors, non-handed
  • Deadlocking latch with 3/4" throw, full-length touchbar; includes wood and machine screws with sex nuts

Product Highlights

Grade 1, 3-hour fire-rated rim exit device; 36-inch wide-stile; exit-only, non-handed; deadlocking latch.

Product Information

Standard Information

  • Brand: DORMAKABA
  • Manufacturer Part Number: F8300B 689
Technical Specifications
Brand
DORMAKABA
Manufacturer Part Number
F8300B-689
Series
8000 Series (F8300)
Model
F8300B 689
Product Type
Rim exit device
Device Type
Rim panic exit device
Function
Exit only (no outside operation)
Fire Rating
UL listed for 3-hour labeled fire doors
Grade
ANSI/BHMA A156.3, Grade 1
Device Length
36-inch (Size B)
Door Thickness
Fits 1-3/4" to 2-1/4"
Minimum Stile Width
4-1/2" (minimum stile)
Stile Type
Wide stile
Handing
Non-handed
Latch Type
Deadlocking latch
Throw
3/4"
Standard Strike
No. 463 (standard)
Includes
Wood and machine screws with sex nuts
Finish
Powder coated aluminum - 689
Compatible Door Materials
Wood; steel
Application
Single and double doors with mullion; commercial labeled openings
Dogging
Less dogging / hex key dogging options noted (dogging not permitted on F fire-rated models per code)
Construction
Full-length touchbar; solid steel touchbar and rail assembly with ABS thermoplastic end caps
Options
Electric latch retraction (ES) and other order-time options available
Standards and Certifications
UL and CUL listed; conforms to UL10C; NFPA 101 and NFPA 80 compliant; ADA and ICC A117.1 compliant; listed with California Office of the State Fire Marshal; Miami-Dade County approval No. 06-912.04
