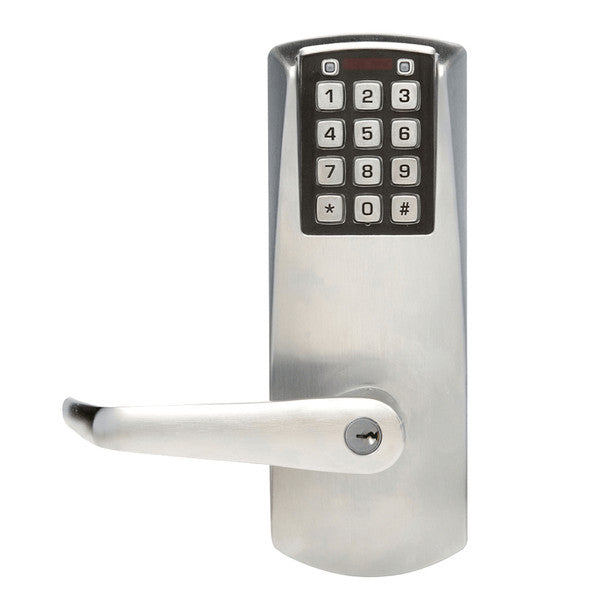

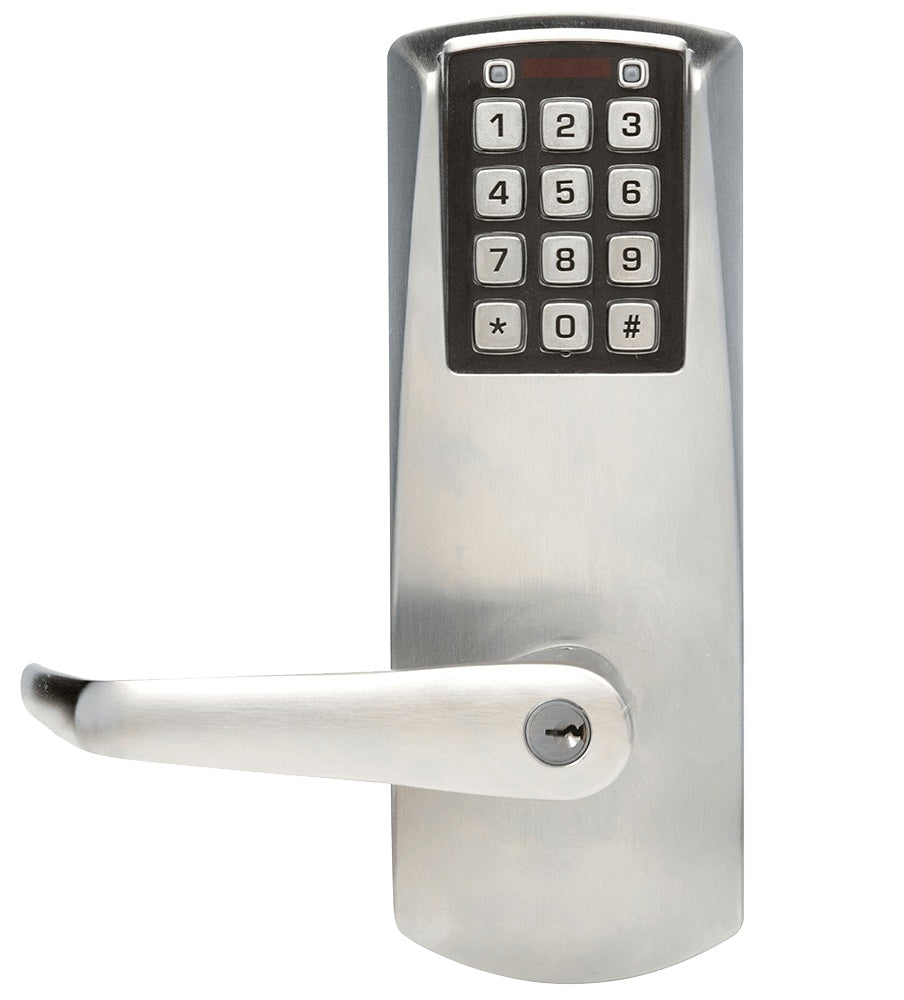

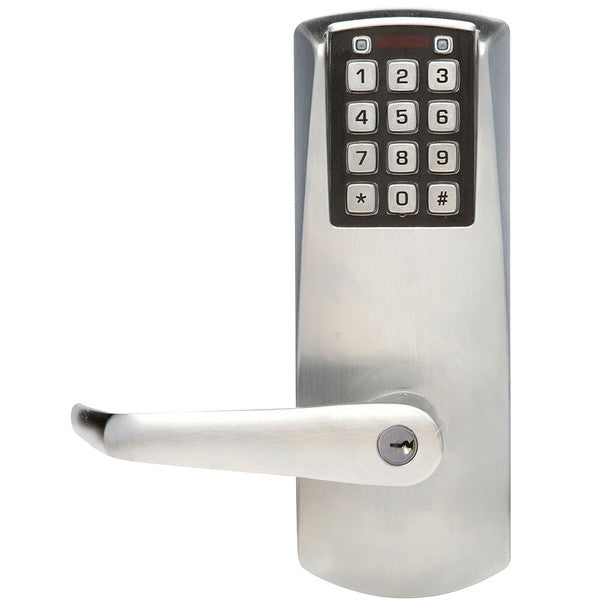

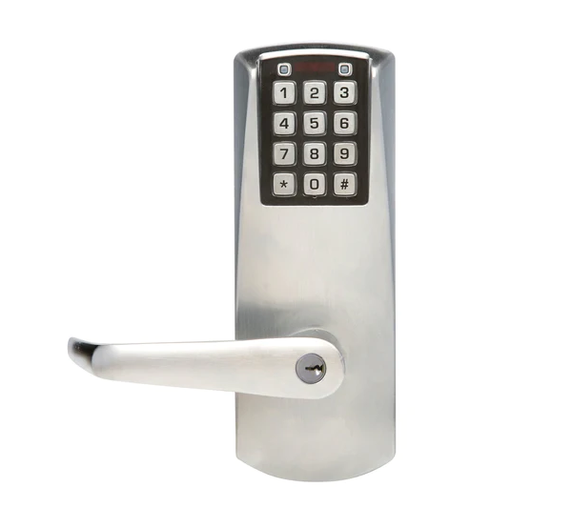

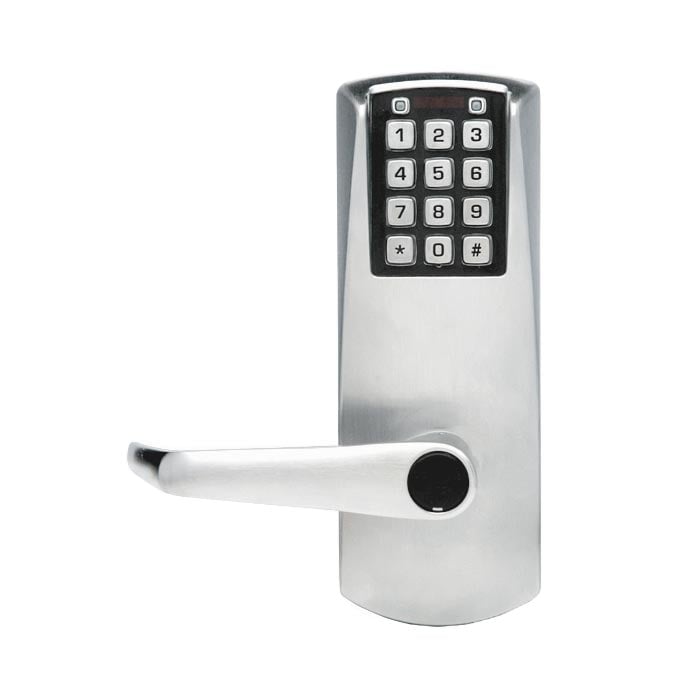

Dormakaba E2031XSLL-626-41 Cylindrical Locks with Keypad Trim

Product Description

The DORMAKABA E2031XSLL-626-41 is a cylindrical lock with keypad trim. This economical medium-duty commercial electronic lock allows you to assign and issue PIN codes using the keypad. Each time there is a user change, simply log-in with your master PIN to modify users. Suitable for offices, hospitals, schools, and more.

• 100 User capacity with millions of possible code choices.
• Satin chrome finish.
• 3 Operation modes: Access, lockout, & passage

Product Highlights

This electronic lock eliminates the costs and security concerns of managing keys. Using touchpad control, you will assign and issue PIN code credentials of 4-8 digits in length.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: E2031XSLL-626-41
• Country of Origin: Mexico

Technical Specifications

• Country of Origin (subject to change): Mexico
• Manufacturer: dormakaba USA Inc.
• ANSI Rating: A156.25, Grade 1 (Best)
• Battery Type: AA
• BHMA Rating: Grade 1 (Best)
• Finish: Satin Chrome
• Keyway: Schlage C
• Lock Features: Audit Trail, Passage Mode
• Solution: Electronic
• Handle Type: Lever Handle Door Locks
• Access Type: Key
• Brand: dormakaba E-Plex
• Door Handing: Reversible
• Battery Life: 100,000 Cycles
• Door Prep: Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
• Door Opening: ["Standard"]
• Code Length: 4 to 8 Digits
• Code Capacity: 100
• Fire Rating: UL 10C
• Users: 100
• Door Thickness Minimum: 1 3/8 in.
• Door Thickness Maximum: 2 1/2 in.
• Backset: 2 3/4 in.
• Door Stile Width: Minimum 5 in.
• Recommended Uses For Product: Residential Doors, Commercial Doors, Outdoor Applications, Modern Settings
• Number of Pieces: 1
• Included Components: Hardware
• Model Number: E2031XSLL-626-41
• Model Name: E2031XSLL-626-41 16402316
• Lock Type: Keypad
• Controller Type: Hand Control
• Control Method: Remote
• Smart Home Compatibility: Not Smart Home Compatible
• Style: Modern
• Material Type: Metal
• Item Weight: 7.8 Pounds
• Audit Events: 1,000
• Throw: 1/2"
• Series: E-Plex 2000
• Function: Keypad w/ Key Override
• Lockset type: Cylindrical Lock
• Key Override: KIL, Kaba Cylinder (Schlage "C" Keyway) included
• Locking Device Option: Cylindrical 1/2" (13 mm) throw latch, floating face plate 2-3/4" (70 mm) backset
• Number of Codes: Multiple Users 100 Codes
• Handing: Non-handed; pre-assembled for left-hand door installations easily changed in the field
• Audit Trail: The most recent 1,000 Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.
• Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel -based software
• Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes programmed for one-time access or come-and-go access for 1 to 24 hours
• User Parameters: Code length adjustable to accept 4 to 8 digits Anti-tamper lockout adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time adjustable from 2 to 20 seconds
• Lock Power: Battery Powered - Batteries located in outside housing; offers quick and easy battery replacements (three AA Alkaline batteries provide up to 100,000 cycles); lock data is maintained if batteries fail.
• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Latches: Cylindrical: 1/2" (13 mm) throw latch
• Strikes: Cylindrical locks packaged standard with both ANSI A115.3 T Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Ease of Installation: No wiring to or through the door no risk of pinched wires
• Door Preparation: Cylindrical and Exit Trim ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)
• Door Thickness: Cylindrical: 1 " (35 mm) to 2 " (64 mm); pre-assembled to accommodate doors 1 " (41 mm) to 2" (50 mm)
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
• Environmental: Indoor/Outdoor approved; -31 F (-35 C) to 151 F (66 C); Windstorm approved/certified
• Finishes: Satin Chrome 626 (26D) housings and levers, Satin Brass 606 (04) or Dark Bronze 744 (10B) housings and levers.
• Access Control: Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys, and cards. Provides exterior access by PIN code, while allowing free egress.
• Lockset Grade: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Pushbuttons: Vandal-resistant, solid metal pushbuttons
• Wiring: No Wires: Requires no wiring to or through the door eliminates risk of damage from pinched wires that can result in costly callbacks
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Strike: Packaged standard with both ANSI A11.53 T Strike and A115.2 ASA Strike
• Power: Three AA Alkaline batteries provide up to 100,000 cycles
• Fire-Rating: UL and cUL Listed up to 3 Hours
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
