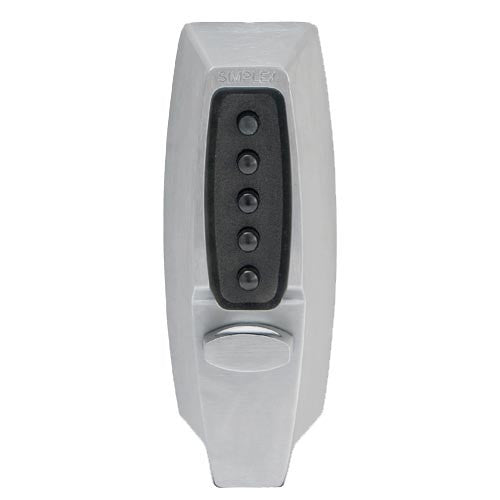

Dormakaba 7102-26d-41 Simplex Pushbutton Deadbolt Lock

Product Description

The DORMAKABA 7102-26d-41 is a mechanical pushbutton keyless deadbolt lock from the Simplex 7100 Series, designed for commercial-grade access control without batteries or electronics. The unit functions as an auxiliary deadbolt, delivering a 1 inch latch throw and accommodating backsets of 2-3/8 inches or 2-3/4 inches. Door thickness compatibility spans 1-3/8 inches to 2 inches, covering the majority of commercial hollow metal and solid wood door assemblies. Handing is field settable, eliminating the need to specify left or right swing at the time of order. The Satin Chrome finish is designated US26D/626, matching widely specified commercial hardware standards. Locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary installers.

The 7102-26d-41 is suited for interior and secondary access points in government facilities, healthcare environments, schools, and general commercial buildings where a standalone mechanical access solution is required. The keyless pushbutton mechanism eliminates key management for controlled interior spaces such as server rooms, medication storage areas, stairwell doors, and utility closets. Because it operates entirely mechanically, it functions without power and requires no network integration, making it reliable in locations where wiring is impractical or where power outages must not affect access.

Key Features

• Mechanical pushbutton operation with no batteries or wiring required
• Auxiliary deadbolt function with 1 inch latch throw
• Accepts 2-3/8 inch or 2-3/4 inch backset for flexible door prep compatibility
• Field-settable handing eliminates pre-specification of door swing
• Fits door thicknesses from 1-3/8 inches to 2 inches
• Satin Chrome finish (US26D/626) meets standard commercial hardware finish specifications

Compatibility

Designed for commercial door assemblies with door thicknesses between 1-3/8 inches and 2 inches, accepting standard 2-3/8 inch or 2-3/4 inch backset preparations. Part of the Simplex 7100 Series product line.

Installation Notes

Installation is typically performed by a licensed locksmith or commercial door hardware technician. Verify door prep dimensions, backset, and thickness before installation, and confirm the correct handing setting before final mounting. Follow applicable building and fire codes for the door assembly type and occupancy classification. No electrical connections are required for this mechanical unit.

Technical Specifications

• Series: Simplex 7100 Series
• Function: Auxiliary Deadbolt
• Finish: Satin Chrome (US26D/626)
• Grade: Commercial
• Backset: 2-3/8 inches or 2-3/4 inches
• Latch Throw: 1 inch deadbolt
• Door Thickness: 1-3/8 inches to 2 inches
• Handing: Field settable
• Warranty: 1 Year

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 7102-26d-41
