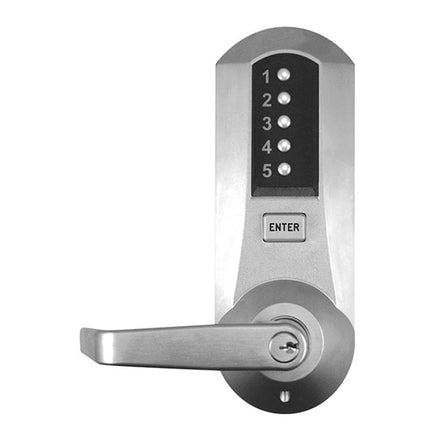

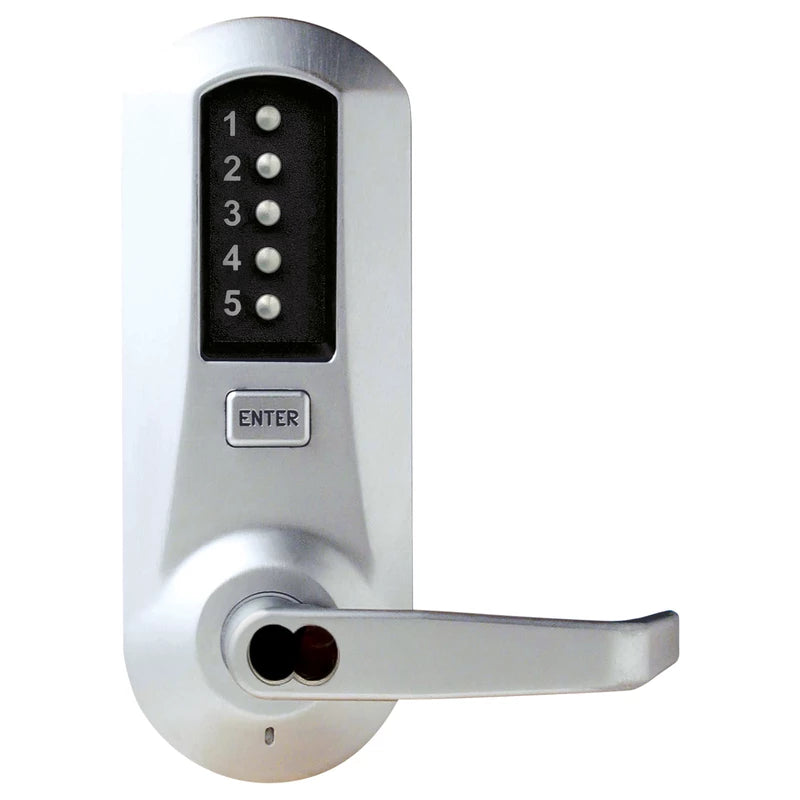

Dormakaba 5021SWL-26D-41 Simplex Pushbutton Cyl. Lock w/ Lever Combination Entry-LFIC Schlage

Product Description

The DORMAKABA 5021SWL-26D-41 Simplex 5000 Series lock provides exterior access by combination and allows free egress. The numeric keypad is vandal resistant with solid metal pushbuttons. This fully mechanical lock eliminates battery replacements and has an easy-to-manage single access code. The lock is easily programmed via the keypad without removing it from the door.

• Numeric Keypad is Vandal resistant with solid metal pushbuttons
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Easy-to-manage single access code for all users

Product Highlights

DORMAKABA's Simplex lock offers unparalleled strength, convenience, and flexibility. It eliminates the costs associated with issuing, controlling, and collecting keys and cards.

Product Information

Standard Information

• Brand: DORMAKABA
• Manufacturer Part Number: 5021SWL-26D-41

Technical Specifications

• Operation Mode: Single Access Code
• Door Thickness: 1-3/8 in. to 2-1/4 in. Pre-assembled to accommodate doors 1-5/8 in. to 2 in.
• Minimum Stile Recommended: 5 in.
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Fire Rating: 3-hour UL/ULC fire rating for A-label doors and installed with an existing fire-rated exit device (where applicable)
• Handing: Completely Reversible
• Key Override: Schlage Key Override (less core)
• Brand: Dormakaba
• Finishes: US26D (626) Satin Chrome

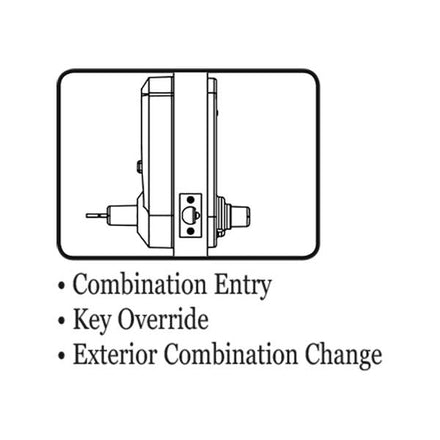

• Lock Function: Combination Entry Function with Key Override
• Usage: Heavy Duty
• Backset: 2-3/4"
• Latch: 1/2" throw - 1-1/8" x 2-1/4" face
• Strike: 4-7/8 x 1-1/4 ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
• Function: Cylindrical Lock
• Locking Device Options: Cylindrical
• Alternate Part Number-1: 153013
• Finish: 626 - Satin Chrome
• Substrate Type: Brass or Bronze
• Door Handing: Non-Handed
• Stile Width: 5"
• Segment: Door Hardware
• Latch Throw: 1/2"
• Grade: Grade 1
• Keyed: Yes
• Cylinder Type: S - Schlage FSIC Prep, Less Core
• Handle Type: Lever
• Lock Type: Cylindrical
• Keying: Keyed Alike (only applies if multiple locks are purchased)
• Cylinder and Keyways: C Keyway
• Door Thickness Range: 1-3/8" to 2-1/4"
• Standard Cylinder: Conventional Cylinder
• Features: Vandal resistant, metal pushbuttons
• Code: Single access code feature makes 'one easy-to-manage code' for all users
• Lever: With Winston lever
• Listing: UL listed hardware
• Door Hole: Covers existing standard ASA 161 door hole
• Hardware: Vandal resistant hardware with solid metal pushbuttons
• Installation: It easily installs on wood or metal doors
• Face Plate: Floating face plate
• Cylindrical throw latch: 1/2 inch (13 mm) throw latch
