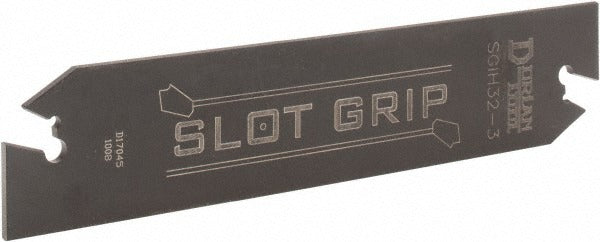

Dorian Tool 73310162956 Sgih Indexable Cutoff Blade

Product Description

The DORIAN TOOL 73310162956 is an SGIH-style double end neutral indexable cutoff blade designed for cut-off and grooving operations on CNC lathes and turning centers. The blade measures 31.80 mm (1.252 inches) in height, 2.39 mm (0.094 inches) in width, and 149.90 mm (5.9016 inches) overall length. It accepts SGT-style inserts in size code 5 with a fixed 3.00 mm insert width, providing consistent groove width and clean parting cuts. Engineered for both left-hand and right-hand setups, this neutral-orientation blade offers flexible positioning in the tool block without requiring a dedicated handed holder.

This blade is suited for production turning environments where cut-off and grooving are performed on workpieces up to 3.937 inches in diameter. The double-end design extends service life by allowing the blade to be flipped when one end shows wear, reducing tooling cost per part. It is part of the Slot Grip series and is appropriate for use in both high-volume production shops and job shops running mixed turning operations on ferrous and non-ferrous materials.

Key Features

• Double-end design doubles usable blade life before replacement
• Neutral cutting direction supports left-hand and right-hand configurations
• Compatible with SGT (N/R/L) inserts, insert size code 5, 3.00 mm insert width
• Blade height of 31.80 mm (1.252 inches) with a 25.00 mm (0.984 inches) cutting height
• Maximum workpiece diameter capacity of 3.937 inches
• Part of the Slot Grip series, optimized for cut-off and grooving applications

Compatibility

Compatible with SGT-style inserts (N/R/L) at insert size code 5 with a 3.00 mm insert width. Designed for use in Slot Grip series toolholders configured for SGIH-style cutoff blades. Manufacturer catalog reference: SGIH32-3.

Installation Notes

Installation is performed by a machinist or CNC toolroom technician. Before mounting the blade, ensure the machine is fully powered down and the spindle is locked. Secure the blade in the holder to the tool manufacturer's recommended clamping torque using appropriate hex keys, and verify insert seating before resuming cuts. Confirm workpiece diameter does not exceed the 3.937-inch maximum capacity before engaging the cut.
