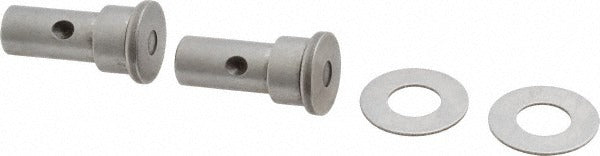

Dorian Tool 73310129085 2 Pin 2 Wheel Knurl Set

Product Description

The DORIAN TOOL 73310129085 is a 2 pin, 2 wheel knurl set designed for use with compatible knurl holder shanks on CNC and manual lathes. The set includes the two knurling wheels and the two drive pins needed to complete a knurl wheel assembly. Knurl sets of this type are consumable tooling components replaced during routine maintenance or when wheel profiles wear beyond acceptable tolerances. Installation and replacement are performed by machinists and toolroom technicians. The set weighs 0.09 pounds, making it a lightweight but precision-critical component in any knurling operation.

This knurl set is suited for lathe-based knurling operations in production machining, tool and die, and general metalworking environments. It is used wherever a knurl holder shank is mounted in a CNC or manual lathe turret to produce a knurled surface finish on cylindrical workpieces. The set is noted as compatible with the CNC109 knurl holder model. Typical applications include producing grip patterns on handles, fasteners, and adjustment knobs in both short-run and production settings.

Key Features

• Includes 2 knurling wheels and 2 drive pins as a complete replacement set
• Compatible with CNC109 knurl holder shank
• Designed for use on CNC and manual lathes producing knurled surface finishes
• Lightweight at 0.09 pounds for easy handling and quick changeout
• UNSPSC Code 23242118 for procurement and catalog classification

Compatibility

Compatible with the CNC109 knurl holder shank. Designed for use with knurl holder shanks that accept a 2 pin, 2 wheel knurl set configuration.

Installation Notes

Knurl set replacement is performed by a machinist or toolroom technician. Power down and lock out the lathe spindle before removing or installing knurl wheels and pins. Ensure the knurl holder shank is clean and free of chips or debris before seating the new wheels and pins. Verify wheel alignment and pin seating before returning the holder to service.
