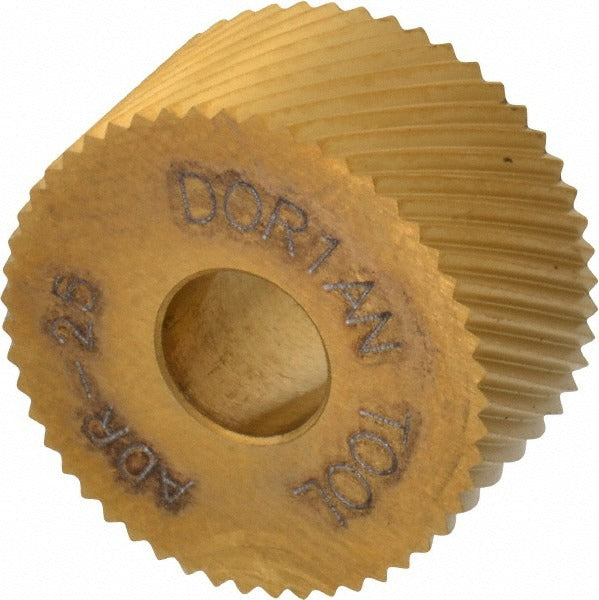

Dorian Tool 73310123644 Standard Knurl Wheel 3/4 in 25 Tpi

Product Description

The DORIAN TOOL 73310123644 is a standard knurl wheel designed for use in knurling operations on metal lathes and similar turning equipment. This wheel features a right-hand diagonal tooth pattern with a 90-degree included tooth angle and a 25 TPI circular pitch, producing a medium-pitch knurl finish on workpieces. Manufactured from high speed steel with a bright finish, it delivers consistent pattern transfer across a range of metals. The 30-degree helix angle and Series A classification make it a straightforward selection for standard form-type knurling applications. Machinists and toolroom professionals install this wheel as part of a knurling tool holder assembly.

This knurl wheel is suited for form knurling operations on manual and CNC lathes in production and job-shop environments. The diagonal tooth pattern produces a right-hand diagonal texture commonly applied to handles, grip surfaces, and fastener heads requiring a defined knurl finish. At 3/4 inch diameter with a 3/8 inch face width and a 1/4 inch hole diameter, it fits standard Series A knurl tool holders used in light to medium turning work. It is appropriate for residential shop, commercial machine shop, and industrial production settings.

Key Features

• Right-hand diagonal tooth pattern for consistent directional knurl texture
• 90-degree included tooth angle with 25 TPI circular pitch (medium pitch)
• High speed steel construction with bright finish for durability and clean pattern transfer
• 30-degree helix angle suited to form-type knurling operations
• Series A knurl wheel fits standard A-series tool holders
• 3/4 inch diameter with 1/4 inch mounting hole for common lathe tooling setups

Compatibility

Designed as an OEM-style replacement or standard-stock knurl wheel for Series A knurl tool holders accepting a 3/4 inch diameter wheel with a 1/4 inch hole and 3/8 inch face width.

Installation Notes

Installation is performed by qualified machinists following standard lathe toolroom practices. Power down and lock out the lathe spindle before seating or removing the knurl wheel from the holder. Ensure the wheel rotates freely on its mounting pin or arbor with no side play before beginning a knurling pass. Refer to the tool holder manufacturer instructions for proper wheel orientation and clamping torque guidance.
