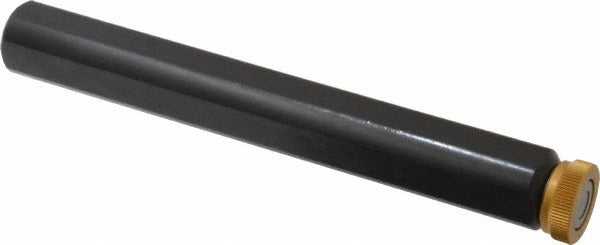

Dorian Tool 73310122620 Internal Machine Knurler

Product Description

The DORIAN TOOL 73310122620 is an internal machine knurler designed for creating precise knurled patterns on the interior surfaces of workpieces. It features a 1-1/8 inch inside diameter and a 3/4 inch shank diameter, making it suitable for CNC lathes and manual engine lathes where internal knurling is required. The tool is 6 inches long with a 1 inch knurl diameter and a 3/8 inch face width. One knurl wheel is required and is included with the tool. The knurl wheel produces a straight pattern. This tool is intended for use by machinists and toolroom professionals working with metal or similar materials.

The 73310122620 internal machine knurler is used in machine shop environments where interior bore surfaces require a knurled finish for grip, press-fit retention, or cosmetic requirements. It mounts via a 3/4 inch shank into a standard toolholder on a lathe or turning center. The 1/2 inch hole diameter accommodates the knurl wheel mounting pin. This tool is suited for both production runs and one-off toolroom applications.

Key Features

• Internal machine knurler configuration for inside-diameter knurling operations
• 1-1/8 inch inside diameter and 3/4 inch shank diameter for secure toolholder mounting
• 6 inch overall length with a 1 inch knurl diameter and 3/8 inch face width
• Includes one straight-pattern knurl wheel; one knurl required per setup
• 1/2 inch hole diameter for knurl wheel pin mounting

Compatibility

Designed as an OEM-style replacement and standard fitment internal machine knurler for lathes and turning centers accepting a 3/4 inch shank toolholder.

Installation Notes

Installation and operation should be performed by a qualified machinist familiar with lathe tooling setup. Power down and lock out the machine before mounting or adjusting the knurler in the toolholder. Secure the shank firmly in the toolpost or turret holder before beginning any knurling pass. Follow the machine manufacturer guidelines and applicable shop safety procedures when setting feed rate and spindle speed for internal knurling operations.
