Dorian Tool 73310104084 Milling Machine Drawbar 7/16-20

Product Description

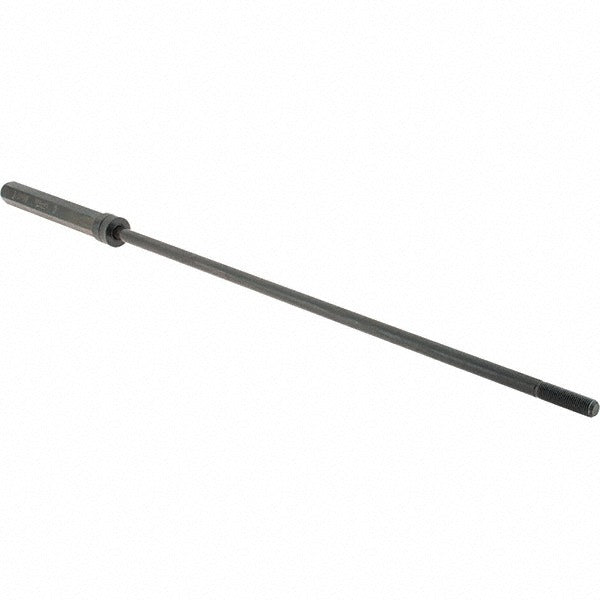

The DORIAN TOOL 73310104084 is a milling machine drawbar designed to secure tool holders in the spindle of a vertical milling machine. It measures 24-1/2 inches overall length with a 6-1/2 inch hex length and a 1-3/4 inch thread length, threaded at 7/16-20. The bar length is 18 inches. This drawbar is a direct replacement component installed by machinists and machine tool technicians performing spindle tooling maintenance or setup changes on compatible milling equipment.

This drawbar is suited for use on vertical knee mills and similar milling machines that require a 7/16-20 threaded drawbar for retaining R8 or compatible tool holders in the spindle. It is listed as compatible with Aliant and Sharp milling machines, making it a practical replacement for worn or damaged OEM drawbars in production and job shop environments. Machinists and maintenance technicians working on these machine platforms will find this a direct-fit option for restoring proper spindle tooling retention.

Key Features

• 24-1/2 inch overall length for correct fit in compatible spindle assemblies
• 7/16-20 thread size for secure tool holder engagement
• 6-1/2 inch hex length allows positive wrench engagement for tightening and removal
• 18 inch bar length suits standard knee mill spindle depth requirements
• Direct replacement part for Aliant and Sharp milling machines

Compatibility

Compatible with Aliant and Sharp milling machines as stated by the manufacturer. Verify spindle thread size and drawbar overall length against your machine specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or machine tool technician. Always power down and lock out the machine before accessing the spindle or removing tooling. Use an appropriately sized wrench on the hex section to tighten or loosen the drawbar. Do not over-torque the drawbar, as this can damage the tool holder taper or spindle threads.
