Dorian Tool 73310101400 Cxa Turning Facing Tool Post Holder

Product Description

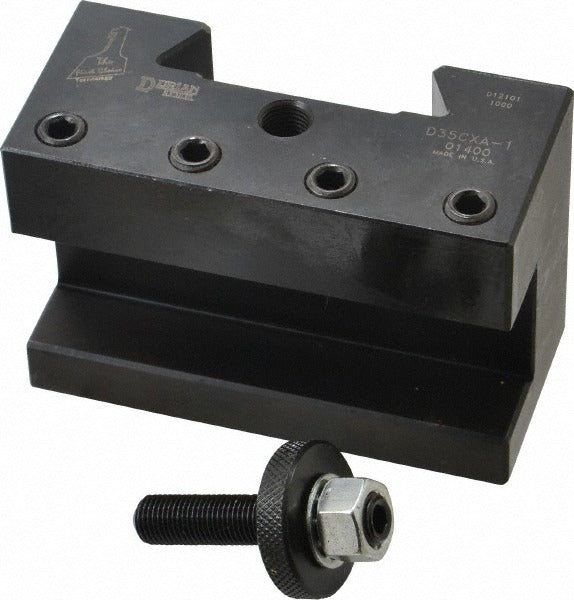

The DORIAN TOOL 73310101400 is a CXA Series No. 1 Turning and Facing Holder designed for use with quick-change tool post systems on manual lathes. It accepts cutting tools up to 1 inch in size and positions the tool centerline at 1.625 inches. The holder measures 2.5 inches in overall height and 3.75 inches in overall length. Weighing 3 pounds, it is built for rigidity and repeatable tool positioning during turning and facing operations. Licensed machinists and tool room technicians are the primary installers of this type of holder.

This holder is suited for lathes with a swing range of 14 to 17 inches, placing it in the mid-size manual lathe category common in job shops, maintenance facilities, and training environments. It is used in turning and facing operations where quick tool changes and consistent centerline height are required. The CXA series designation indicates compatibility with the corresponding CXA quick-change tool post standard. Through coolant is not supported on this holder.

Key Features

• CXA Series quick-change tool post holder for lathes with 14 to 17 inch swing
• Accepts cutting tools up to 1 inch (25.40 mm) in maximum tool size
• Centerline height of 1.625 inches for consistent tool positioning
• Overall height of 2.5 inches and overall length of 3.75 inches
• Dorian Dimension A of 0.5 inches for series-standard fitment
• No through coolant, straightforward mechanical design

Compatibility

Designed for use with CXA Series quick-change tool post systems on manual lathes with a swing of 14 to 17 inches.

Installation Notes

Installation is performed by a machinist or tool room technician. Power down and disengage the lathe spindle before mounting or adjusting any tool post holder. Secure the holder firmly in the quick-change tool post and verify centerline height alignment before operation. Follow the lathe and tool post manufacturer guidelines for torque and clamping procedures.
