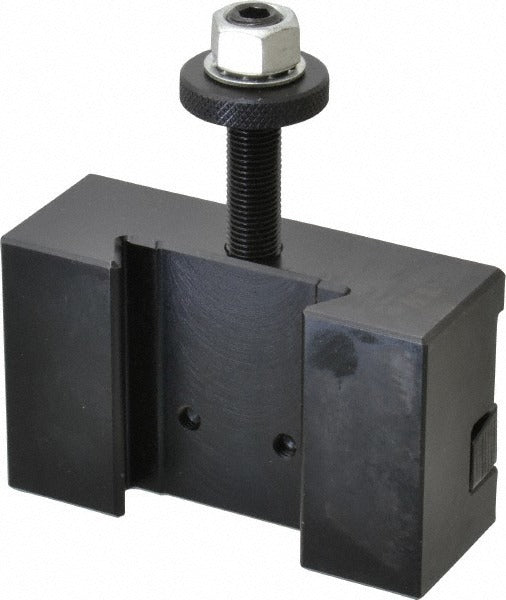

Dorian Tool 73310101276 Bxa Cut-off Holder 71C

Product Description

The DORIAN TOOL 73310101276 is a BXA-series carbide combination cut-off holder designed for engine lathes with a swing range of 13 to 15 inches. Designated as Number 71C, this tool post holder accepts cut-off and grooving operations using a 19-2 blade. It features an overall height of 1.75 inches and an overall length of 3.25 inches, with a centerline height of 1.3118 inches. The holder is built for shops running BXA-compatible quick-change tool posts and is installed by machinists and toolroom technicians on manual and CNC engine lathes within the stated swing capacity.

This holder fits lathes in the BXA size class, covering machines with a swing of 13 to 15 inches (330 to 380 mm). It is suited for production and job-shop environments where carbide-tipped cut-off and combination grooving operations are performed on ferrous and non-ferrous workpieces. The 71C designation identifies it within the Dorian quick-change tooling system, making it a direct fit for BXA-compatible quick-change tool posts without shimming or modification.

Key Features

• BXA series designation for compatibility with BXA quick-change tool posts
• Accepts 19-2 blade with a blade size of 0.0618 inches (1.57 mm)
• Overall height of 1.75 inches and overall length of 3.25 inches for compact tooling envelope
• Centerline height of 1.3118 inches for precise on-center tool alignment
• Designed for lathes with 13 to 15 inch swing (330 to 380 mm)
• No through-coolant configuration - suited for standard dry or flood coolant setups

Compatibility

Designed for use with BXA-series quick-change tool post systems on engine lathes with a swing of 13 to 15 inches. Accepts the 19-2 blade with a tool capacity of 1.75 inches.

Installation Notes

Installation should be performed by a qualified machinist with the lathe fully powered down and spindle locked before mounting or adjusting the tool post holder. Verify that the tool post is BXA-compatible before installing this holder, as fitting an incorrect series holder can result in improper centerline height and unsafe tool engagement. Tighten the quick-change locking handle to the tool post manufacturer's recommended procedure. Confirm blade seating and alignment before taking a test cut.
