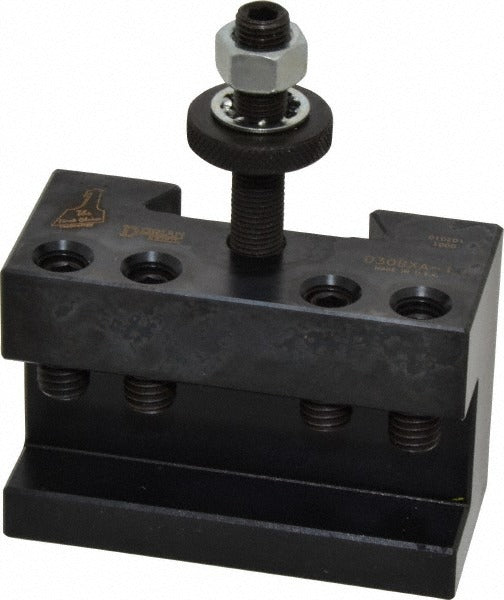

Dorian Tool 73310101250 Bxa No.1 Turning Facing Holder

Product Description

The DORIAN TOOL 73310101250 is a BXA Series No. 1 Turning and Facing Holder designed for use on engine lathes with a swing range of 13 to 15 inches. It mounts to a BXA-style quick-change tool post and securely positions turning and facing tools at the correct centerline height. The holder measures 3.25 inches in overall length and 2.25 inches in overall height, with a centerline height of 1.3125 inches. It accepts cutting tools up to 1 inch in cross-section. Machinists and tool room operators install this holder as part of a quick-change tooling setup to reduce tool changeover time and maintain repeatable cutting geometry.

This holder is suited for manual and semi-production lathe work in job shops, maintenance shops, and tool rooms. It fits lathes in the 13 to 15 inch swing class, which covers a wide range of mid-size engine lathes commonly found in trade and industrial environments. The BXA series is a standard quick-change size for this class of machine. No through-coolant feature is included, making it appropriate for dry cutting or flood-coolant setups where coolant is applied externally. Machinists setting up turning or facing operations will find the 1-inch maximum tool capacity suitable for a broad range of HSS and carbide insert toolholders.

Key Features

• BXA Series quick-change tool post compatibility for mid-size engine lathes
• Accepts cutting tools up to 1 inch in cross-section
• Centerline height of 1.3125 inches for accurate tool positioning
• Overall length of 3.25 inches and overall height of 2.25 inches
• Fits lathes with 13 to 15 inch swing range
• No through-coolant port - compatible with external flood-coolant or dry cutting setups

Compatibility

Designed for use with BXA-style quick-change tool posts on engine lathes with a swing of 13 to 15 inches.

Installation Notes

Installation is performed by a machinist or tool room technician. The lathe must be powered down and the spindle brought to a full stop before mounting or adjusting any toolholder. Secure the holder firmly in the quick-change tool post according to the post manufacturer's clamping procedure. Verify tool centerline height against the workpiece center before beginning any cutting operation.
