Dorian Tool 73310101104 Axa Boring Turning Holder

Product Description

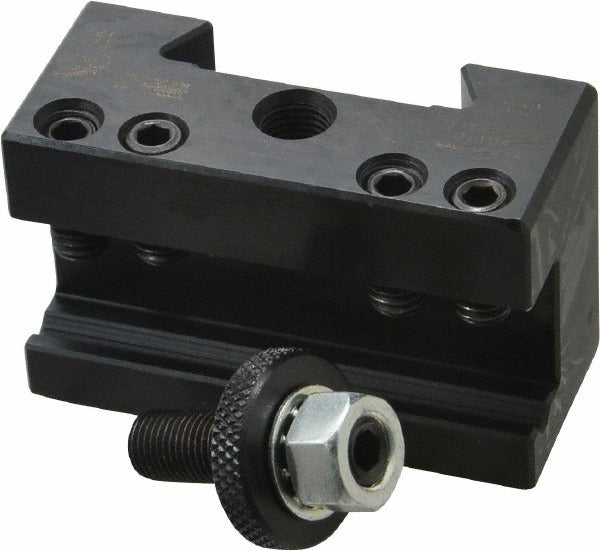

The DORIAN TOOL 73310101104 is an AXA Series No. 2 Boring, Turning, and Facing Holder designed for manual and CNC engine lathes. It mounts to an AXA-size quick-change tool post and accepts cutting tools up to 3/4 inch, positioning them on a centerline height of 1.25 inches. The holder measures 1.75 inches overall height and 2.75 inches overall length. At 2 pounds, it is a rigid, compact unit built for turning and facing operations in production and toolroom environments. Licensed machinists and toolroom operators are the primary installers and users.

This holder is suited for lathes with a swing of 12 inches or under, making it appropriate for bench lathes and smaller engine lathes in job shops, maintenance facilities, and training environments. It accepts a shank size of 7/16 inch and does not include through-coolant capability. The AXA series is a standard quick-change sizing used across a wide range of light-duty and mid-duty lathe platforms.

Key Features

• Accepts cutting tools up to 3/4 inch for boring, turning, and facing operations
• AXA series quick-change sizing for fast, repeatable tool changes
• Centerline height of 1.25 inches for proper tool alignment at the spindle center
• Rated for lathes with up to 12 inches of swing
• 7/16 inch shank size for secure clamping in the tool post
• Compact profile at 1.75 inches overall height and 2.75 inches overall length

Compatibility

Designed as an OEM-style replacement and direct-fit holder for AXA quick-change tool post systems on lathes with a swing of 12 inches or under.

Installation Notes

Installation is performed by a machinist or toolroom technician. Before changing or seating a tool holder, disengage the lathe spindle and verify the machine is in a full stop with the drive locked out per shop lockout/tagout procedures. Secure the holder firmly in the quick-change post to eliminate tool deflection under cutting loads. Confirm cutting tool tip height is set to spindle centerline before beginning any turning or facing pass.
