Dorian Tool 73310101058 Bxa Tool Post Holder Set 14 Piece

Product Description

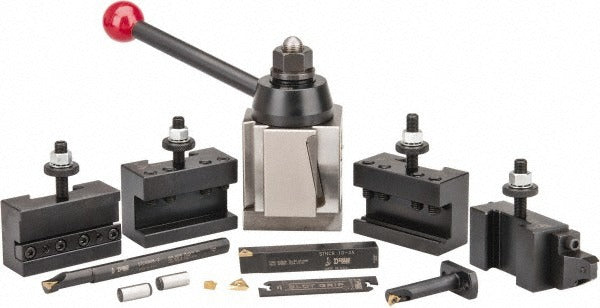

The DORIAN TOOL 73310101058 is a 14-piece BXA series tool post holder set engineered for lathes with a swing range of 13 to 15 inches. The set includes four holders, four toolholders, five inserts, and a tool post, providing a complete quick-change tooling setup for a single machine. The BXA series is a widely recognized quick-change standard suited to mid-size manual and CNC-assisted lathes. The base width measures 3 inches and the bolt hole diameter is 5/8 inch. Machinists, toolroom operators, and shop technicians install this type of set when equipping or upgrading a lathe for production or maintenance turning work.

This set is designed for lathes with a swing measurement between 13 and 15 inches, which covers a common range of bench and floor-standing manual lathes found in job shops, maintenance facilities, and training environments. The quick-change BXA configuration allows holders to be swapped without resetting tool height, reducing changeover time between turning, boring, and threading operations. Coolant-through capability is not included with this set.

Key Features

• 14-piece set includes tool post, four holders, four toolholders, and five inserts
• BXA series quick-change standard for lathes with 13 to 15 inch swing
• Base width of 3 inches with a 5/8 inch bolt hole diameter
• Complete out-of-box setup - no additional tooling required to mount and begin use
• No coolant-through passages, keeping the design straightforward for dry and flood-coolant applications where through-tool delivery is not needed

Compatibility

Designed for use with lathes in the 13 to 15 inch swing range that accept BXA series quick-change tool posts with a 5/8 inch mounting bolt hole.

Installation Notes

Installation is performed by a machinist or qualified shop technician. Power down and lock out the lathe before mounting the tool post or seating any holder. The tool post mounts to the compound rest using the specified bolt hole; confirm the compound rest T-slot or stud configuration matches the 5/8 inch bolt hole diameter before installation. Verify tool height alignment with the lathe centerline after mounting each holder to ensure proper cutting geometry.
