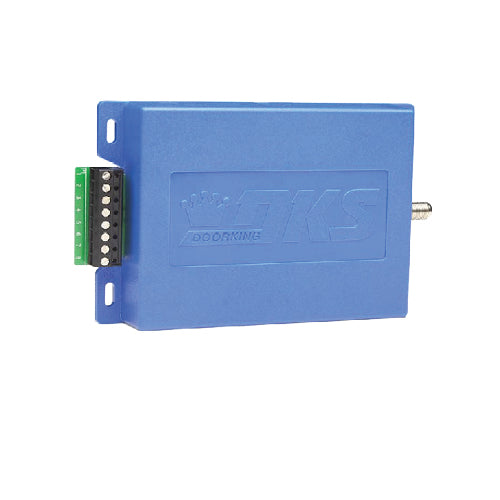

DOOR KING 8040-080 MicroPlus Receiver 12 - 24 Volt AC/DC 5.75 Inch Height x 3.75 Inch Width x 1.13 Inch Depth

Product Description

The DOOR KING MicroPlus Receiver, identified by MPN 8040-080, is designed for remote operation of vehicular access gates. It combines RF and proximity card access control in a single unit. The receiver functions effectively at 12 to 24 volts AC/DC, making it suitable for various installations.

• Compact size of five point seventy-five inches by three point seventy-five inches by one point thirteen inches
• Supports up to five thousand three hundred transmitters
• Two-year warranty provided

Product Highlights

This receiver communicates with Micro Plus or Micro Click transmitters and features a dry contact form C relay.

Product Information

Standard Information

• Manufacturer: DOOR KING
• Part #: 774550

Technical Specifications

• Power Supply: 12 - 24 Volt AC/DC
• Dimensions: 5.75 inches height x 3.75 inches width x 1.13 inches depth
• Frequency: 318 MHz
• Relay Type: Dry contact form C relay (30 Volt, 1 Amp max)
• Compatibility: Access controllers DKS 1833, 1835, 1837, 1838
• Wiegand Formats: 26, 30 or 31-bit
• Transmitter Capacity: Supports up to 5300 transmitters
