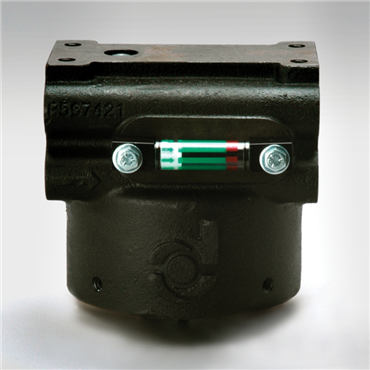

Donaldson P567640 Head Assembly

Product Description

The Donaldson P567640 is a head assembly designed for use in hydraulic systems. This high pressure filter protects essential components from contamination. It prevents issues caused by debris from upstream components that could damage downstream systems.

• Inline mounting feature for installation ease
• Cartridge-style element designed for high pressure
• Durable construction for reliable operation

Product Highlights

This head assembly is ideal for maintaining system integrity in hydraulic applications.

Product Information

Standard Information

• Brand: Donaldson
• Availability: Ready To Ship

Technical Specifications

• Bypass Valve Setting LR: 89.92 psi, 6.2 bar
• Inlet Size: 1 1/2 SAE 4 Bolt Code 61, SAE-20 O-Ring
• Outlet Size: 1 1/2 SAE 4 Bolt Code 61, SAE-20 O-Ring
• Thread Size: M110 x 2
• Family Name: HPK04 Series Engine Cylinder Head Assembly
• Height: 5.31 inches
• Length: 5 inches
• Weight: 21.7 LB
• EAN or UPC: 742330196830
