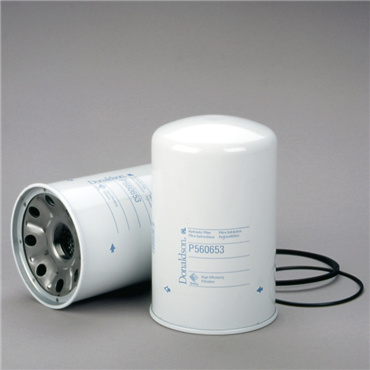

Donaldson P560653 Spin-On Fuel Filter

Product Description

The Donaldson P560653 is a spin-on fuel filter designed for efficient filtering in various applications. It features a size of five point zero four inches in outer diameter and a thread size of one and a half inches by sixteen UN. This filter is compatible with CASE/CASE IH machinery and is built to provide reliable performance.

• Outer Diameter: 5.04 inches
• Thread Size: 1 1/2-16 UN
• Synthetic media type for effective filtration

Product Highlights

The Donaldson P560653 ensures effective filtration for fuel systems, minimizing contaminants for smooth operation. Its design supports easy installation and maintenance, making it suitable for various machinery needs.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P560653

Technical Specifications

• Length: 7.85 in, 199.3 mm
• Weight: 3.2 LB
• Gasket Inner Diameter: 4.76 in, 120.9 mm
• Gasket Outer Diameter: 5.04 in, 128 mm
• Efficiency Beta: 9 Micron @ Beta 1000
• Primary Application: CASE/CASE IH 1976934C5
• Media Type: Synthetic
• O.D.: 5.04 in, 128 mm
