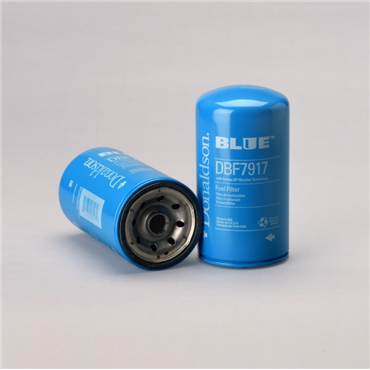

Donaldson DBF7917 Spin-On Fuel Filter

Product Description

The Donaldson DBF7917 is a spin-on fuel filter designed for effective filtration in various applications. This fuel filter features a primary design for secondary filtration, ensuring optimal fuel cleanliness during operations.

• Outer diameter measures three point sixty-six inches
• Utilizes a thirteen over sixteen-12 UN thread size
• Efficient at filtering down to four microns

Product Highlights

The Donaldson DBF7917 provides reliable performance and exceptional filtration efficiency. It is suitable for use in various machinery and vehicles requiring fuel filtration.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: DBF7917

Technical Specifications

• Thread Size: 13/16-12 UN
• Collapse Burst Pressure: 75.42 psi (5.2 bar)
• Style: Spin-On
• Outer Diameter: 3.66 inches (92.9 mm)
• Efficiency Rating: 99.9% at 4 microns
• Gasket Outer Diameter: 3.39 inches (86.2 mm)
• Length: 6.85 inches (174 mm)
• Media Brand: Synteq XP
