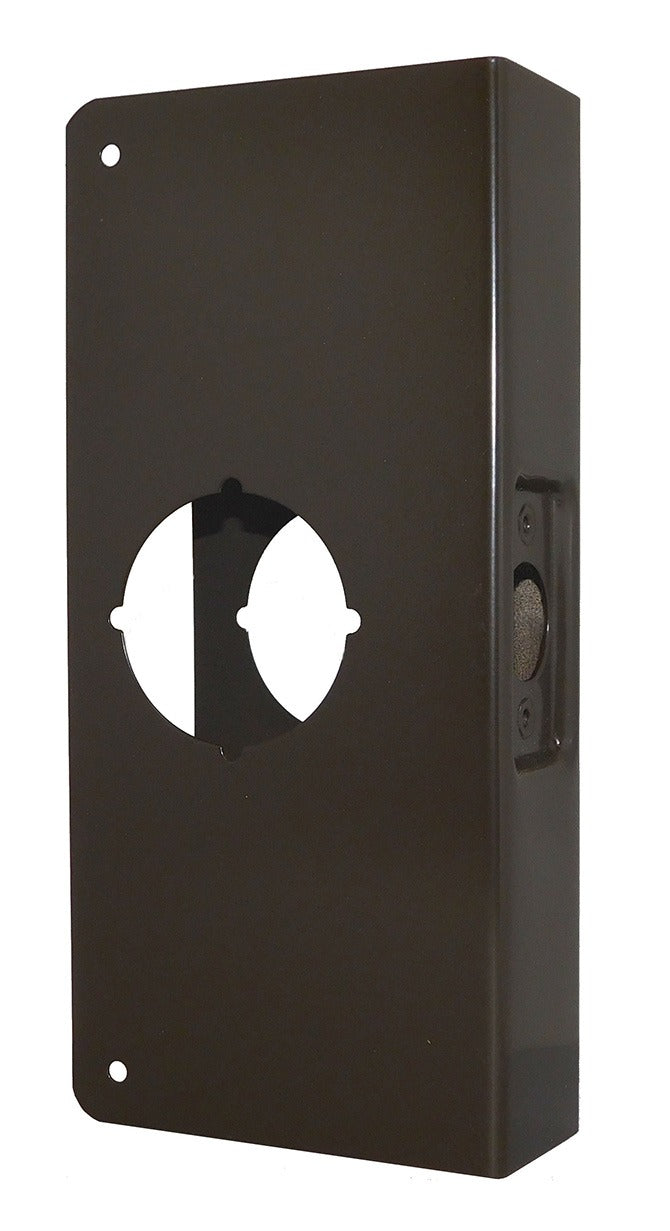

Don-jo CW210B Wrap Around Plate Oil Rubbed Bronze

Product Description

The DON-JO CW210B is a classic wrap around plate designed to reinforce and finish the area surrounding a cylindrical door lockset. It covers the bored hole on the door face and provides a clean, protective border around the lock mechanism. The plate is sized for a 2-1/8 inch diameter bore hole, fits a 2-3/8 inch backset, and is intended for use on 1-3/4 inch thick doors. The Oil Rubbed Bronze finish delivers a dark, matte appearance suited for period-appropriate or transitional door hardware schemes. Door hardware installers and locksmiths fit this piece during new installation or as a retrofit where the existing bore or door face needs coverage.

The CW210B is appropriate for residential and light commercial applications where a cylindrical lockset is being installed or replaced. It is commonly used on interior and exterior doors in homes, offices, and multi-family units where a finished, uniform appearance around the lock cylinder is required. The plate seats flush against the door face and works alongside standard cylindrical locksets with the specified backset dimension. It is sold as a single unit.

Key Features

• Sized for 2-1/8 inch cylindrical bore hole
• Compatible with 2-3/8 inch backset locksets
• Designed for 1-3/4 inch door thickness
• Oil Rubbed Bronze finish for a dark, matte appearance
• Wrap around profile reinforces and conceals the door bore area
• Single-unit packaging for per-door installation

Compatibility

Designed as an OEM-style replacement or new-installation wrap around plate for cylindrical locksets with a 2-1/8 inch bore hole, 2-3/8 inch backset, installed on 1-3/4 inch doors.

Installation Notes

Installation is performed by a door hardware technician or licensed locksmith. The door should be fully closed and the lockset removed before fitting the wrap around plate. Fasten the plate using the appropriate screws for the door material, ensuring the bore hole aligns correctly with the plate opening before final tightening. Follow all applicable local building codes for door hardware installation in commercial occupancies.
