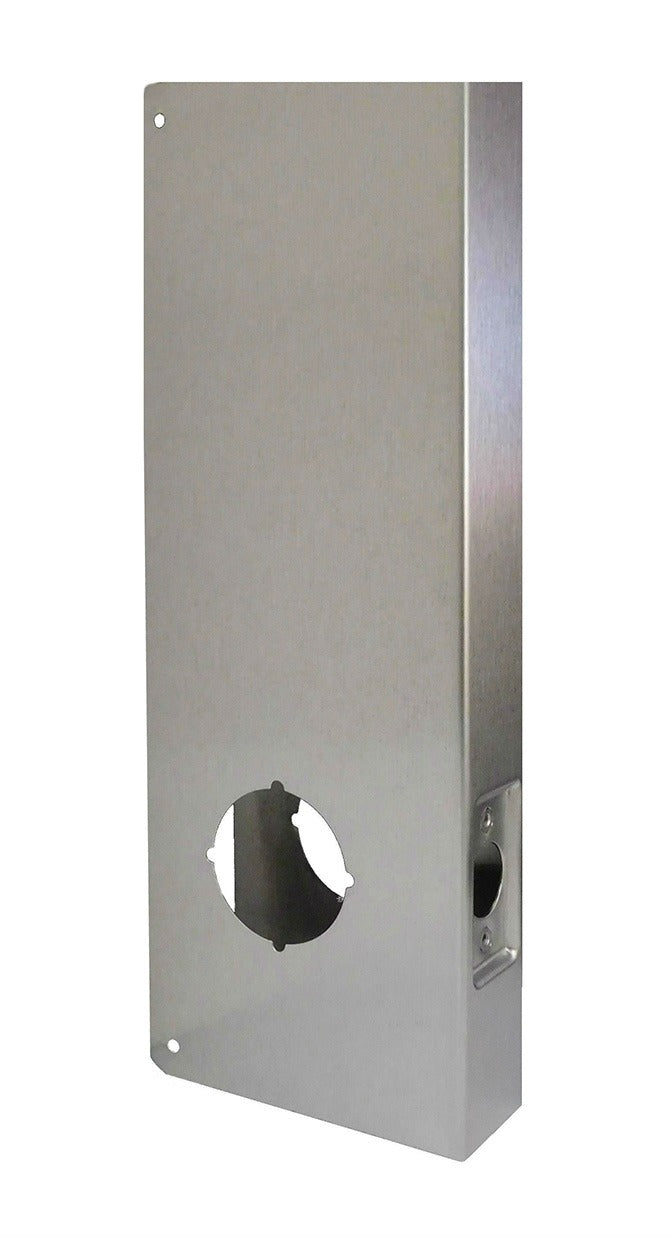

Don-jo CW14S Wrap Around Plate Simplex Alarm Lock Stainless

Product Description

The DON-JO CW14S is a classic wrap around plate designed to reinforce and protect the door face around cylindrical locksets and access control devices. It fits applications using a 2-3/4 inch backset on 1-3/4 inch doors and is finished in stainless steel for corrosion resistance and a clean, professional appearance. Measuring 15.7 inches in length, 5.3 inches in width, and 2 inches in height, this plate provides solid metal coverage around the lock body. It is installed by locksmiths, access control technicians, and door hardware specialists on commercial and institutional entry doors.

This wrap around plate is specifically designed for use with the Simplex 1000 series and Alarm Lock DL2500, DL2700, and DL3000 series access control locksets. It is suited for commercial door applications where the lock hardware requires additional face reinforcement against forced entry or tampering. The stainless steel finish makes it appropriate for high-traffic environments where durability and appearance retention are both required.

Key Features

• Fits 2-3/4 inch backset on 1-3/4 inch doors
• Compatible with Simplex 1000 and Alarm Lock DL2500, DL2700, and DL3000 locksets
• Stainless steel finish resists corrosion in high-traffic commercial environments
• Large plate profile at 15.7 inches long and 5.3 inches wide for maximum door face coverage
• Sold individually as a single unit

Compatibility

Designed for use with Simplex 1000 series and Alarm Lock DL2500, DL2700, and DL3000 series locksets installed on 1-3/4 inch doors with a 2-3/4 inch backset.

Installation Notes

Installation is typically performed by a licensed locksmith or access control technician. The door hardware and any connected access control power should be disconnected before beginning installation. Verify door thickness and backset measurement before mounting to confirm proper fit. Follow applicable local building and fire codes when installing hardware on rated door assemblies.
