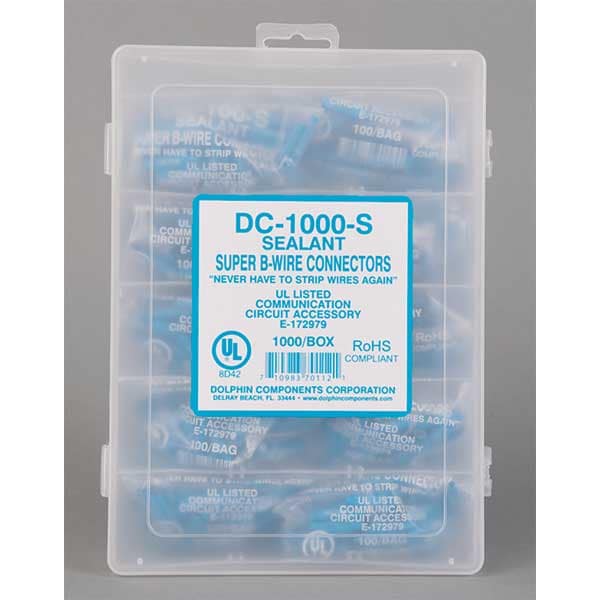

Dolphin DC-1000S Super B Connector

Product Description

The DOLPHIN DC-1000S Super B Connector is designed for effective electrical connections. It pierces through wire insulation, eliminating the need for wire stripping on many gauges. The connector accepts 16 to 24 gauge wires and supports multiple wire connections or thicker insulation. This connector permits testing without prior wire stripping. An internal moisture-resistant sealant safeguards against corrosion and maintains functionality in temperatures ranging from negative sixty degrees Fahrenheit to four hundred seventy-five degrees Fahrenheit.

• Facilitates connections on 16-24 gauge wires without prior stripping.
• Features sealant that provides a moisture barrier and prevents corrosion.
• Enables connection testing without the need to strip wires.

Product Highlights

This product supports efficient wire connections while ensuring moisture protection and resistance to temperature extremes.

Product Information

Standard Information

• Brand: Dolphin
• UPC: 71098370112

Technical Specifications

• Packaging: 1000 per Package
• Color: Blue
• P/N: DOL-DC-1000S
• Sealant Type: Non-Curing Sealant
• Temperature Range: -60°F to 475°F
• Wire Capacity:
• 4-wires: #24 AWG, #22 AWG (insulated)
• 3-wires: #20 AWG, #18 AWG (insulated), #16 AWG (stripped)
