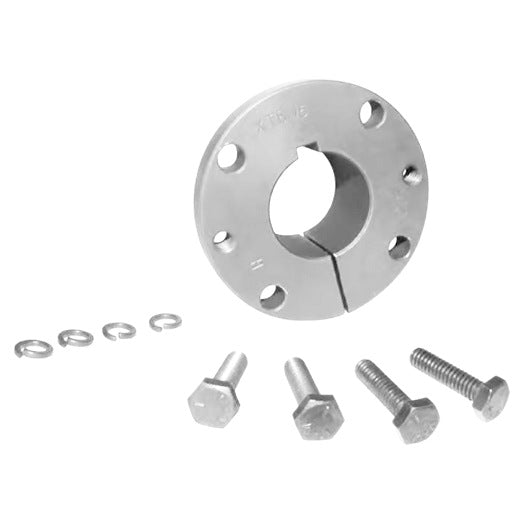

Dodge XTB40X3-15/16 Conveyor Bushing

Product Description

The Dodge XTB40X3-15/16 is a reliable conveyor bushing designed for various mechanical applications. It has a bore diameter of three point nine three seven five inches and a flange outer diameter of seven point one two five inches. This product is suitable for use with conveyor pulleys.

• Durable construction for extended life.
• Two inches per foot taper allows for easy installation.
• Available in steel or gray cast iron.

Product Highlights

The XTB40X3-15/16 bushing is designed for efficiency and adaptability in conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: XTB40X3-15/16

Technical Specifications

• Bore Diameter: 3.9375 inches
• Flange Outside Diameter: 7.1250 inches
• Length Through Bore: 2.8125 inches
• Total Length: 9.15 inches
• Barrel Diameter: 5.3125 inches
• Number of Bolt Holes: 4
• Installation Torque: 100 ft-lbs
• Material: Steel or Gray Cast Iron
