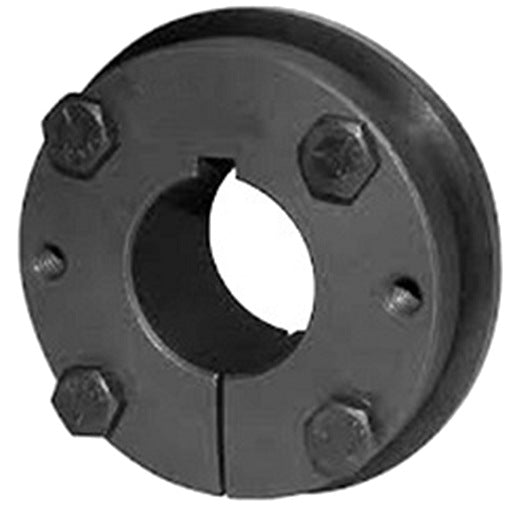

Dodge XTB35 X 2-7/16

Product Description

The Dodge XTB35 X 2-7/16 is a precision bushing designed for mechanical power transmission applications. This product features a bore diameter of two and four hundred thirty-seven thousandths inches, allowing for reliable and efficient performance in conveyor systems. The robust design ensures durability, making it suitable for various industrial environments.

• Manufactured from Steel or Gray Cast Iron
• Designed for easy installation and removal
• Meets the requirements for conveyor pulley applications

Product Highlights

This bushing supports effective power transmission and is ideal for a range of applications, including conveyor systems and industrial machinery.

Product Information

Standard Information

• Brand: Dodge
• MPN: XTB35X2-7/16

Technical Specifications

• Bore Diameter: 2.4375 inches
• Flange Outside Diameter: 6.3125 inches
• Length Through Bore: 2.7813 inches
• Barrel Length: 1.6875 inches
• Screw Length: 2.5 inches
• Number of Bolt Holes: 4
• Installation Torque: 70 ft-lbs
• Flange Thickness: 0.7813 inches
