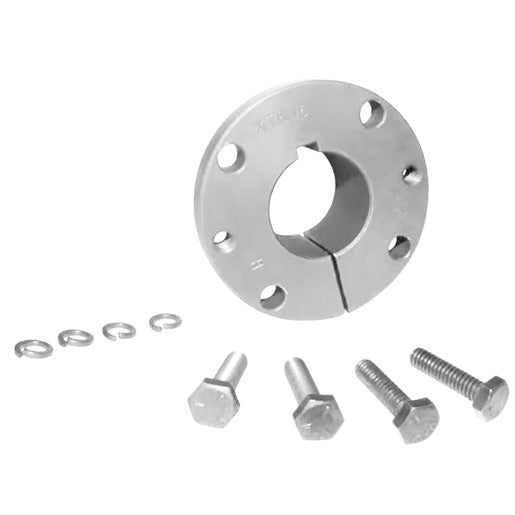

Dodge XTB35 X 2-15/16 Bushing

Product Description

The Dodge XTB35 X 2-15/16 is a bushing designed for mechanical power transmission in conveyor applications. Its robust design allows for easy installation and maintenance. This bushing is suitable for various industrial settings requiring reliable power transfer.

• Compatible with conveyor pulley systems
• Made from durable steel or gray cast iron
• Features a taper design for quick assembly and disassembly

Product Highlights

The XTB35 X 2-15/16 bushing is a key component for efficient machinery operation. Its specific dimensions and material construction ensure long-lasting performance under load.

Product Information

Standard Information

• Brand: Dodge
• Part Number: XTB35 X 2-15/16

Technical Specifications

• Bore Diameter: 2.9375 inches
• Flange Outside Diameter: 6.3125 inches
• Length Through Bore: 2.7813 inches
• Barrel Diameter: 4.6875 inches
• Installation Torque: 70 ft-lbs
• Flange Thickness: 0.7813 inches
• Number of Bolt Holes: 4
• Material: Steel or Gray Cast Iron
